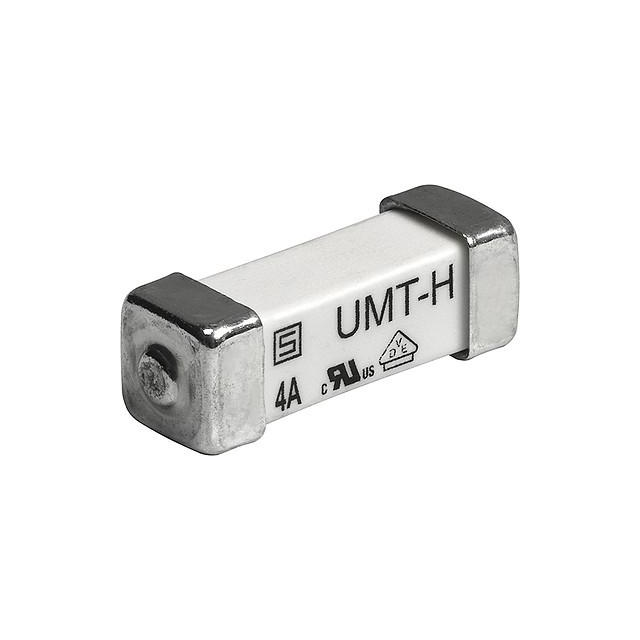

3403.0290.23 Real Image
Same model may have multiple batches, images only for reference.

3403.0290.23

Part No 3403.0290.23
Manufacturer Schurter Inc.
Catalog Fuses
Description UMT-H FUSE 40A T / 40 A 125 V AC 72 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
3403.0290.23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series UMT-H
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 40 A
Voltage Rating - AC 125 V
Voltage Rating - DC 72 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 500A
Melting I2t 3620
Approval Agency CQC, cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-3403.0290.23CT,486-3403.0290.23DKR,486-3403.0290.23TR
Standard Package 1,500
Win Source Part Number 1037932-3403.0290.23
Ultra Librarian 3D Model Ultra Librarian 3403.0290.23 CAD Model

Description

The 3403.0290.23 is a fuse from SCHURTER Inc.

  • Manufacturer: SCHURTER Inc.
  • Product Name: 3403.0290.23
  • Function: Circuit Protection
  • Voltage Rating: 125V AC and 72V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 500A @ rated voltage
  • Current Rating: 40A
  • Melting I2t: 3620
  • Package: 2-SMD, square end block
  • Temperature Range: -55°C to 125°C
  • Series: UMT-H
  • Standard Package: 1,500
