Same model may have multiple batches, images only for reference.

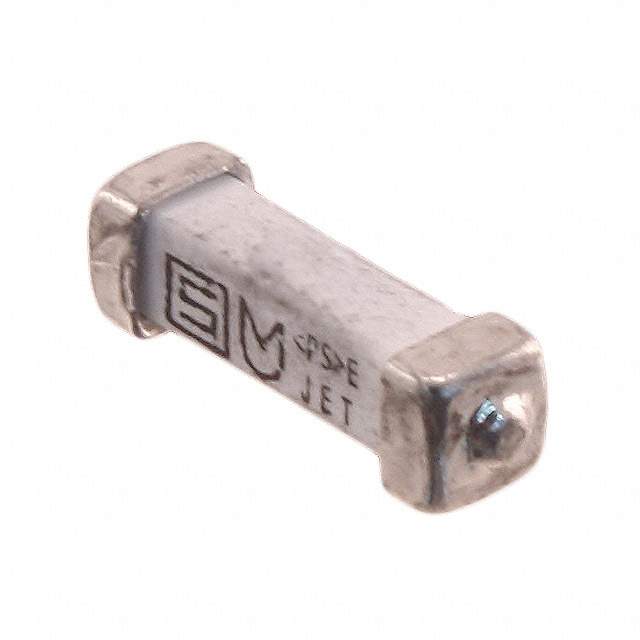

3403.0171.24 Real Image
Same model may have multiple batches, images only for reference.

3403.0171.24

Part No 3403.0171.24
Manufacturer Schurter Inc.
Catalog Fuses
Description Surface Mount Fuse, 3 x 10.1 mm, Time-Lag T, 250 VAC, 125 VDC
Datasheet
3403.0171.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Series UMT 250
Packaging Reel - TR
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3.15A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Slow
Package 2-SMD, Square End Block
Mounting SMD
Breaking Capacity @ Rated Voltage 200A AC, 35A DC
Melting I2t 14
Approvals CQC, cURus, KC, PSE/JET, UL, VDE
Operating Temperature Range -55°C ~ 125°C
Size 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
Win Source Part Number 1128248-3403.0171.24
Manufacturer Homepage www.schurterinc.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3403.0171.24 CAD Model

Description

The Schurter Inc. UMT 250 series fuse is a board mount type fuse with a slow response time.

  • Manufacturer: Schurter Inc.
  • Current Rating: 3.15A
  • Voltage Ratings: 250V AC and 125V DC
  • Breaking Capacity: 200A AC and 35A DC @ rated voltage
  • Melting I2t: 14
  • Approvals: CQC, cURus, KC, PSE/JET, UL, and VDE
  • Mounting: 2-SMD square end block
  • Size: 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
  • Supply and Demand Status: Balanced
  • Alternative Parts: 3403.0171.11
