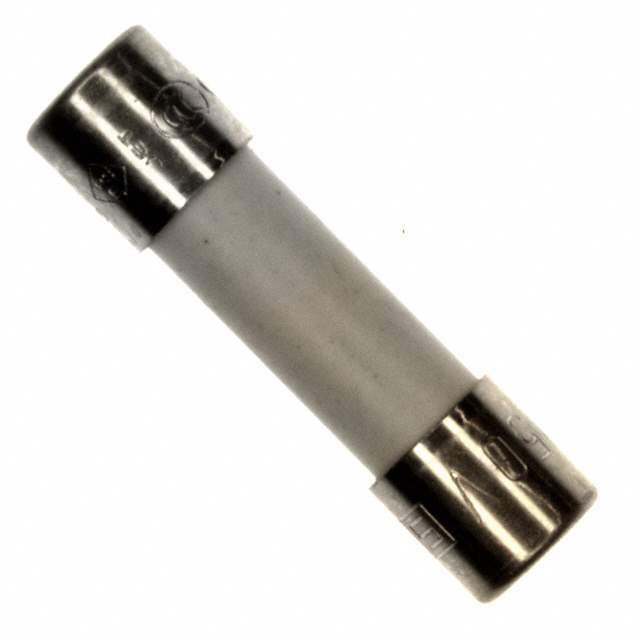

0001.2509 SCHURTER Inc.
Same model may have multiple batches, images only for reference.

0001.2509

Part No 0001.2509
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERAMIC 3.15A 250VAC 300VDC
Datasheet
0001.2509 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer SCHURTER Inc.
Packaging Bulk
Part Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1.5kA
Melting I²t 33.7
Approval Agency CCC, cURus, KC, PSE/JET, VDE
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Ultra Librarian 3D Model Ultra Librarian 0001.2509 CAD Model

Description

Applications

ā— Primary Protection in Equipment

ā— Power Supply Adapter for e.g. laptops

ā— SMPS (Switching Mode Power Supply) for TV's and DVD's
