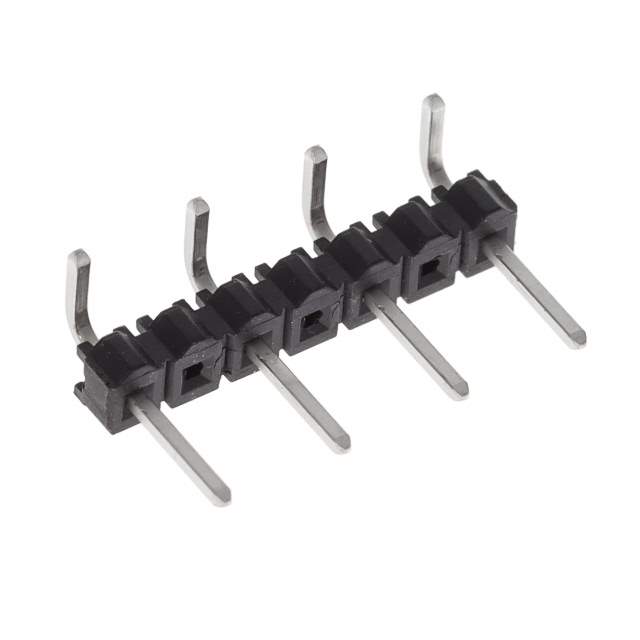

TSW-204-08-T-S-RA

Name: TSW-204-08-T-S-RA
Brand: Samtec Inc.
SKU: 1211006
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-204-08-T-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR .100" 4POS / Connector Header Through Hole, Right Angle 4 position 0.200" (5.08mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSW
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.200" (5.08mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.090" (2.29mm)
Insulation Height	0.119" (3.02mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSW-204
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1211006-TSW-204-08-T-S-RA
Ultra Librarian 3D Model	Ultra Librarian TSW-204-08-T-S-RA CAD Model

Alternative Products

Description

The TSW series male pin header connector is a through-hole, right-angle connector with a push-pull fastening mechanism.

Mounting Type: Through-Hole, Right-Angle
Rows: 1
Positions Loaded: 4
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT), UL94 V-0
Insulation Color: Black
Contact Shape: Square
Contact Length (Mating): 0.230" (5.84mm)
Contact Length (Post): 0.090" (2.29mm)
Contact Finish (Mating/Post): Tin
Application: Board-to-Board or Cable
Pitch-Mating: 0.200" (5.08mm)
Insulation Height: 0.119" (3.02mm)
Operating Temperature Range: -55°C to 105°C
