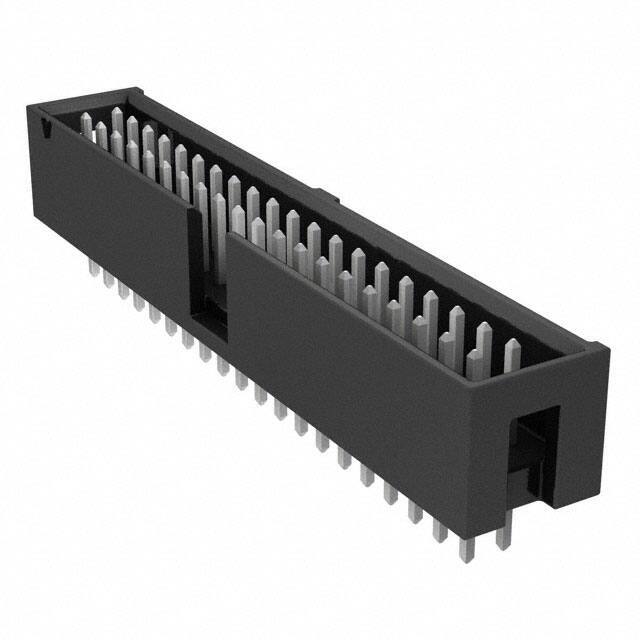

TST-120-01-T-D

Name: TST-120-01-T-D
Brand: Samtec Inc.
SKU: 937811
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TST-120-01-T-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 40POS 2.54MM / Connector Header Through Hole 40 position 0.100" (2.54mm)
Datasheet	TST-120-01-T-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, TST
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.115" (2.92mm)
Overall Contact Length	0.480" (12.19mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	TST-120
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	937811-TST-120-01-T-D
Ultra Librarian 3D Model	Ultra Librarian TST-120-01-T-D CAD Model

Description

The Flex Stack, TST series from Samtec Inc. offers versatile rectangular connectors for various applications. The 937811-TST-120-01-T-D is a male pin header connector with 40 positions and 2 rows.

Number of Positions: 40
Number of Rows: 2
Fastening Type: Push-Pull
Termination: Solder
Mounting Type: Through-Hole
Pitch: 0.100" (2.54mm)
Contact Material: Phosphor Bronze
Current Rating Per Contact: 3.4A
Product Status: Active
REACH: Unaffected
California Prop 65: Compliant
