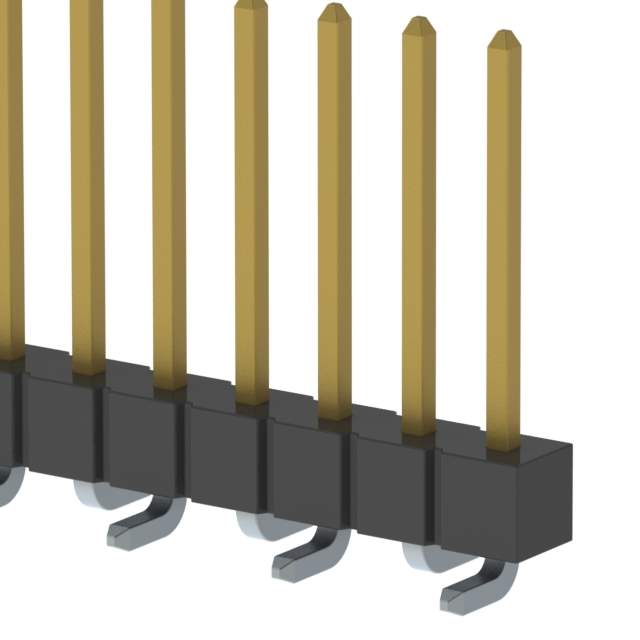

TSM-132-03-S-SV Real Image
Same model may have multiple batches, images only for reference.

TSM-132-03-S-SV

Part No TSM-132-03-S-SV
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 32POS 2.54MM / Connector Header Surface Mount 32 position 0.100" (2.54mm)
Datasheet
TSM-132-03-S-SV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 32
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.420" (10.67mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSM-132
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 7
Win Source Part Number 1078364-TSM-132-03-S-SV
Ultra Librarian 3D Model Ultra Librarian TSM-132-03-S-SV CAD Model

Description

The TSM series header connector from Samtec Inc. is a 32-position male pin connector with a push-pull fastening type. It has a pitch of 0.100” (2.54mm) and is designed for board-to-board or cable applications.

  • Positions: 32
  • Fastening Type: Push-Pull
  • Pitch: 0.100” (2.54mm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Finish (Mating): Gold, 30.0μin (0.76μm)
  • Contact Finish (Post): Tin
  • Insulation Color: Black
  • Flammability Rating: UL94 V-0
  • Current Rating: Amps
  • Temperature Range: -55°C to 125°C
