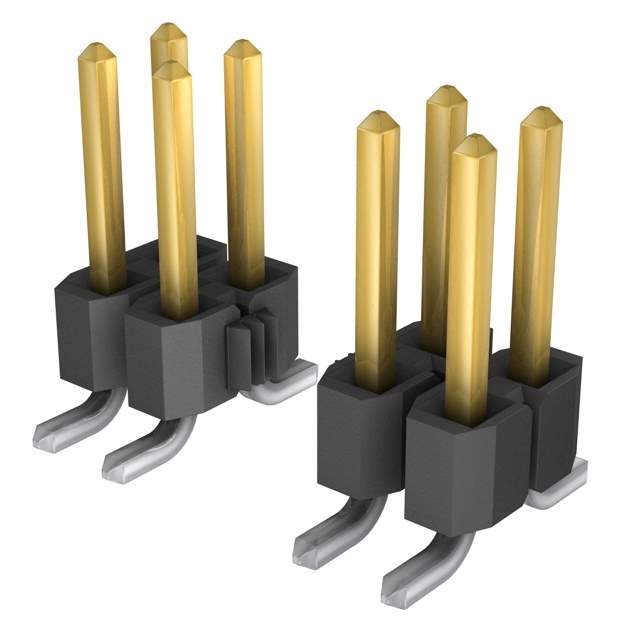

The TSM-111-01-L-DV from Samtec Inc. is a header type connector with male pin contact type.

• Positions: 22
• Rows: Two
• Positions Loaded: All
• Fastening Type: Push-Pull
• Pitch-Mating: 0.100" (2.54mm)
• Contact Finish-Mating: Gold with a thickness of 10.0µin (0.25µm)
• Contact Finish-Post: Tin
• Mounting Type: Surface Mount, SMD (SMT)
• Row Spacing-Mating: 0.100" (2.54mm)
• Contact Length-Mating: 0.230" (5.84mm)
• Insulation Height: 0.100" (2.54mm)
• Insulation Material: Liquid Crystal Polymer (LCP)
• Temperature Range-Operating: -55°C to 125°C
