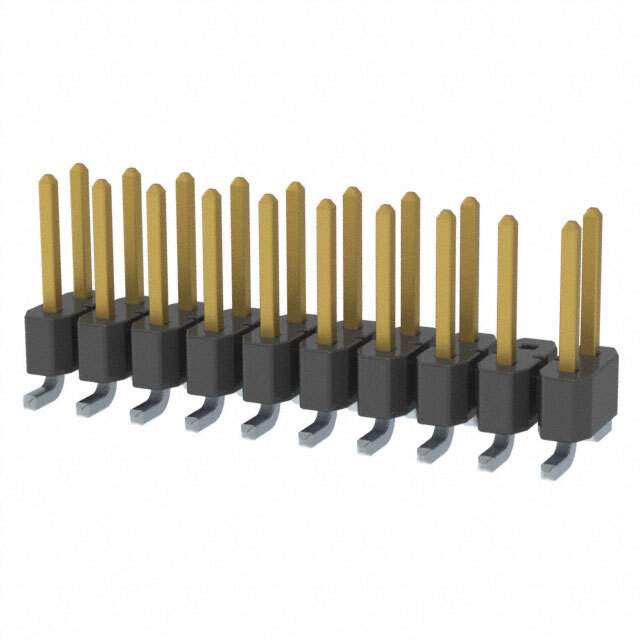

TSM-110-01-L-DV-004-P-TR

Name: TSM-110-01-L-DV-004-P-TR
Brand: Samtec Inc.
SKU: 812075
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-110-01-L-DV-004-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	19
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Manufacturer Pack Quantity	125
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	812078-TSM-110-01-L-DV-004-P-TR
Ultra Librarian 3D Model	Ultra Librarian TSM-110-01-L-DV-004-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. 812078-TSM-110-01-L-DV-004-P-TR is a board to board or cable type connector with a pitch-mating of 0.100" (2.54mm).

Positions: 20
Mounting: Surface Mount
Contact Type: Male Pin
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 10.0μin (0.25μm)
Current Rating: -
Fastening Type: Push-Pull
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 125
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
