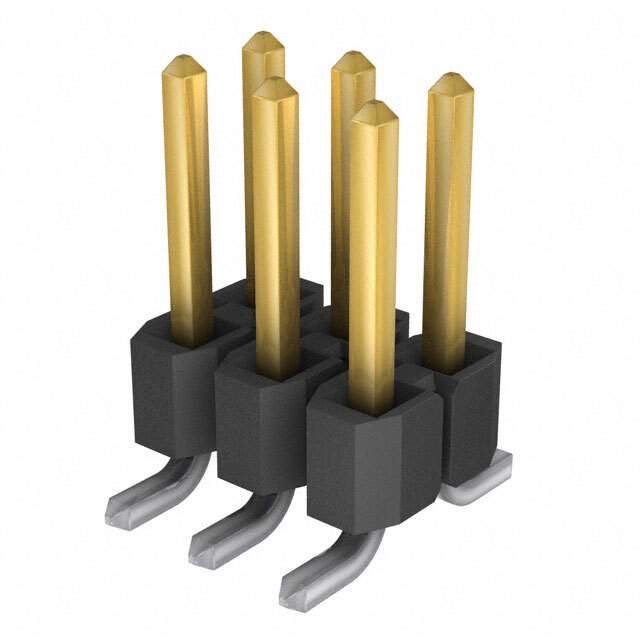

TSM-103-01-S-DV-M-TR

Name: TSM-103-01-S-DV-M-TR
Brand: Samtec Inc.
SKU: 812074
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-103-01-S-DV-M-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 6POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Part Status	Obsolete (End Of Life)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Manufacturer Pack Quantity	225
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	812077-TSM-103-01-S-DV-M-TR
Ultra Librarian 3D Model	Ultra Librarian TSM-103-01-S-DV-M-TR CAD Model

Alternative Products

Description

The Samtec Inc. 812077-TSM-103-01-S-DV-M-TR header connector is a board-to-board or cable connector that features a push-pull fastening type.

Positions: 6
Rows: 2
Positions Loaded: All
Contact Type: Male Pin
Pitch-Mating: 0.100 inches (2.54mm)
Insulation Height: 0.100 inches (2.54mm)
Termination: Soldering
Contact Finish-Mating: Gold (30.0μin (0.76μm))
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Temperature Range: -55°C ~ 125°C
Flammability Rating: UL94 V-0
Status: Obsolete (End of Life)
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 225
MSL Level: 1 (unlimited)
