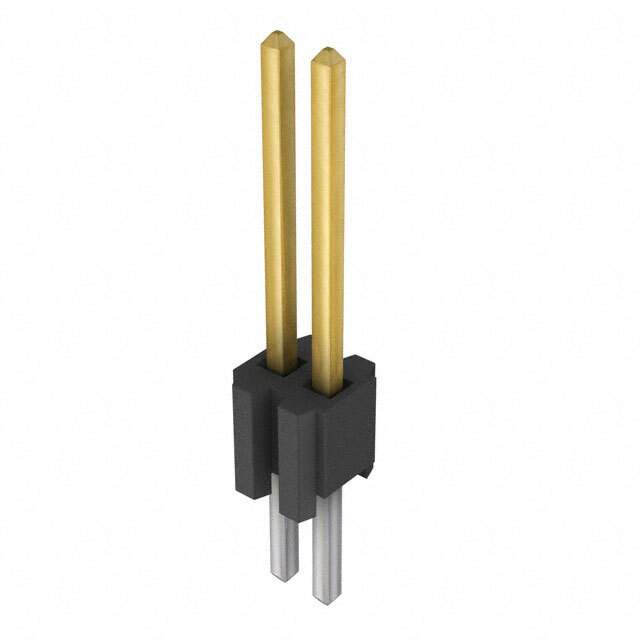

Same model may have multiple batches, images only for reference.

TMS-102-53-L-S

Name: TMS-102-53-L-S
Brand: Samtec Inc.
SKU: 1141956
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMS-102-53-L-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 1.27MM / Connector Header Through Hole 2 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMS
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.285" (7.24mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.505" (12.83mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	5A per Contact
Base Product Number	TMS-102
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	Q9497435
Standard Package	1
Win Source Part Number	1141956-TMS-102-53-L-S
Ultra Librarian 3D Model	Ultra Librarian TMS-102-53-L-S CAD Model

Description

The TMS-102-53-L-S electronic component is a rectangular connector used for male pins with Win Source Part Number 1141956 from Samtec Inc.

Series: TMS
Positions: 2
Package: bulk
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: gold
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Finish-Post: tin
Insulation Color: black
Base Product Number: TMS-102
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
