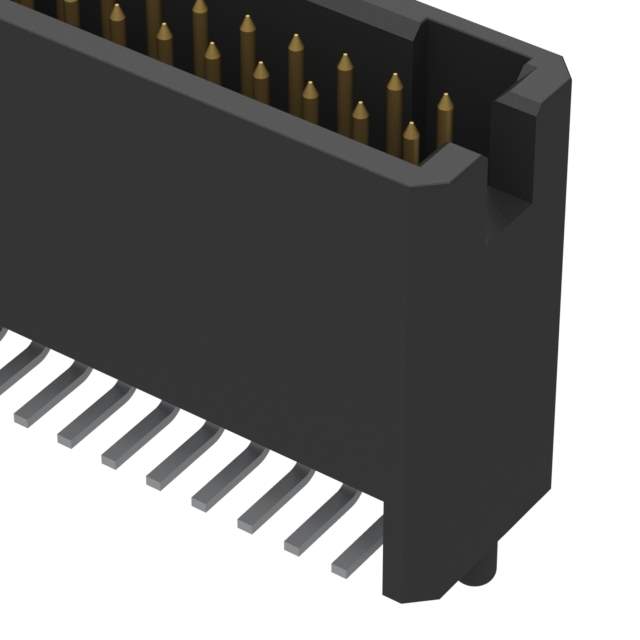

Same model may have multiple batches, images only for reference.

TFC-145-32-F-D-A

Name: TFC-145-32-F-D-A
Brand: Samtec Inc.
SKU: 452899
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TFC-145-32-F-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER .05" 90POS GOLD SMD
Datasheet	TFC-145-32-F-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.130" (3.30mm)
Insulation Height	0.441" (11.20mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3μin (0.08μm)
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3.1A per Contact
Voltage Rating	275VAC
Win Source Part Number	1037850-TFC-145-32-F-D-A
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TFC-145-32-F-D-A CAD Model

Alternative Products

Description

The Samtec Inc. 445961 is a header connector with 90 number of positions and a board guide feature.

Manufacturer: Samtec Inc.
Number of Positions: 90
Feature: Board Guide
Voltage Rating: 275VAC
Current Rating: 3.1A per contact
Type: Shrouded - 4 Wall
Row Spacing - Mating: 0.050" (1.27mm)
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3μin (0.08μm)
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Operating Temperature: -55°C to 125°C
