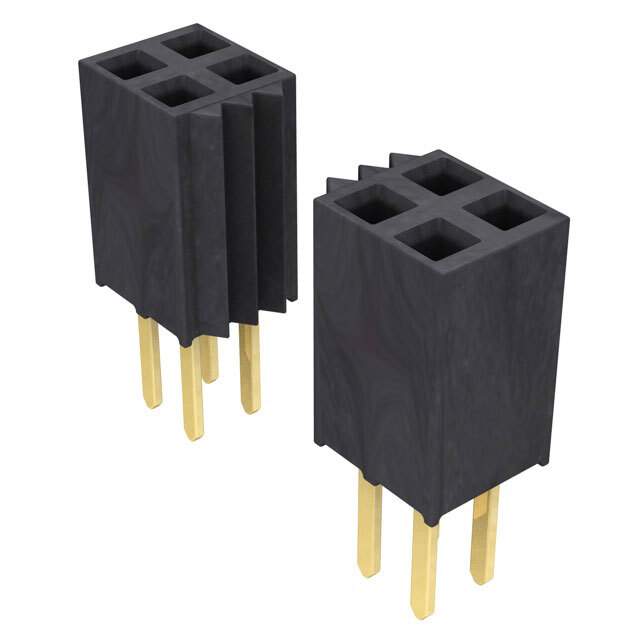

Name: SSW-137-02-G-D
Brand: Samtec Inc.
SKU: 1288845
Availability: InStock

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	74
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.194" (4.93mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SSW-137
Other Names	SAM1214-37
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288845-SSW-137-02-G-D
Ultra Librarian 3D Model	Ultra Librarian SSW-137-02-G-D CAD Model

Description

The SSW series 74-position receptacle connector is a high-quality connector for board-to-board or cable applications. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

Contact Type: Forked
Positions Loaded: All
Pitch: 0.100" (2.54mm)
Mounting Type: Through Hole
Insulation Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Operating Temperature: -55°C to 125°C
Current Rating: 4.7A per contact
Contact Finish Mating: Gold, 20.0µin (0.51µm)
Contact Finish Post: Gold, 3.00µin (0.076µm)
Insulation Color: Black
Contact Shape: Square
Height: 0.335" (8.51mm)
Package: Bulk
