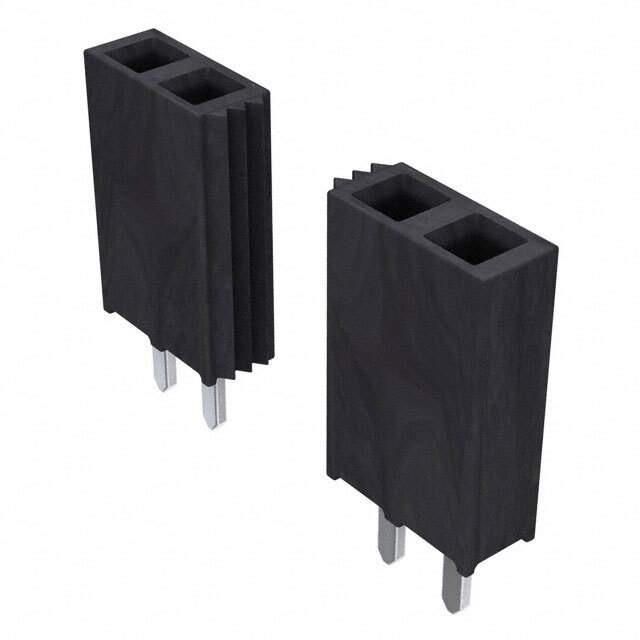

SSW-120-01-S-S

Name: SSW-120-01-S-S
Brand: Samtec Inc.
SKU: 1288660
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-120-01-S-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-120-01-S-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.104" (2.64mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-120
Other Names	SAM1211-20
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288660-SSW-120-01-S-S
Ultra Librarian 3D Model	Ultra Librarian SSW-120-01-S-S CAD Model

Alternative Products

Description

The SSW series female socket connector is a rectangular connector that is designed for board-to-board or cable-to-board applications.

Pitch: 0.100 inches (2.54mm)
Row Spacing: 0.100 inches (2.54mm)
Positions: 20
Row Number: One
Positions Loaded: All positions
Contact Type: Forked
Contact Material: Phosphor bronze
Termination Type: Solder
Fastening Type: Push-pull
Insulation Material: Liquid crystal polymer (LCP)
Insulation Height: 0.335 inches (8.51mm)
Contact Shape: Square
Contact Length: 0.104 inches (2.64mm)
Temperature Range for Operating: from -55°C to 125°C
Series: SSW-120
Package: Bulk
Material Flammability Rating: UL94 V-0
