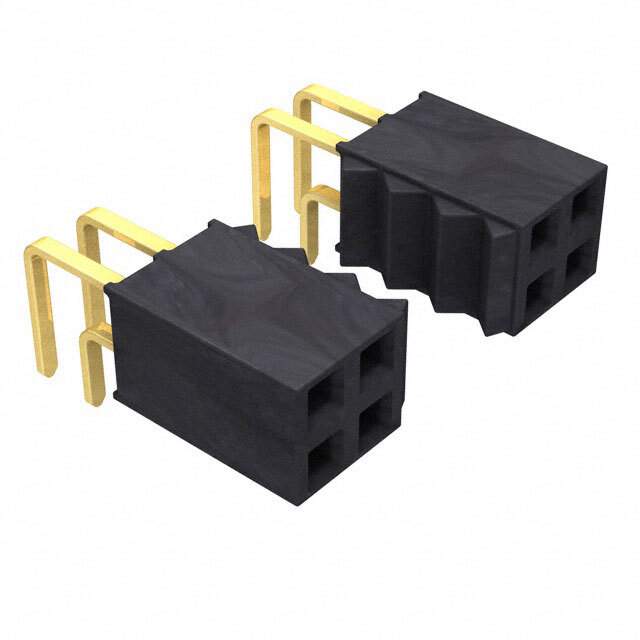

Same model may have multiple batches, images only for reference.

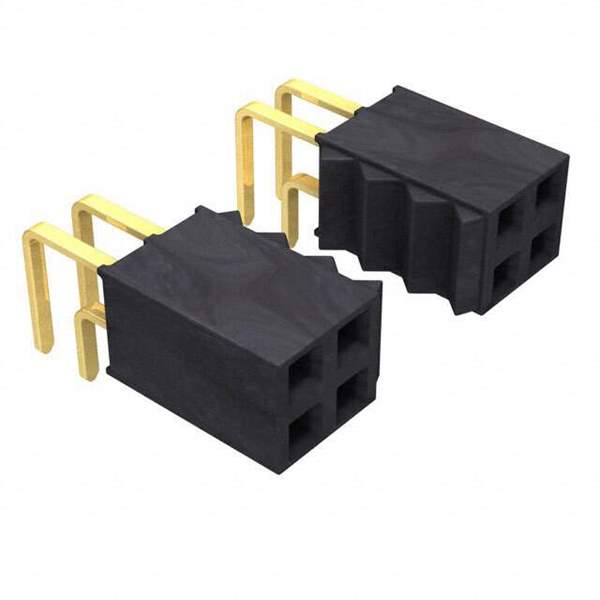

SSW-106-02-G-D-RA Real Image
Same model may have multiple batches, images only for reference.

SSW-106-02-G-D-RA

Part No SSW-106-02-G-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSW-106-02-G-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSW
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.195" (4.95mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 4.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSW-106
Other Names SAM1215-06
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1288467-SSW-106-02-G-D-RA
Ultra Librarian 3D Model Ultra Librarian SSW-106-02-G-D-RA CAD Model

Description

The SSW-106-02-G-D-RA series connector from Samtec Inc. is a highly reliable and efficient connector that is perfect for use in a range of electronic applications.

  • Part Number: 1288467-SSW-106-02-G-D-RA
  • Manufacturer Part Number: SAM1215-06
  • Connector Type: Receptacle
  • Contact Type: Forked
  • Contact Material: Phosphor Bronze
  • Fastening Type: Push-pull
  • Application: Board-to-board or cable applications
  • Pitch-Mating: 0.100" (2.54mm)
  • Insulation Height: 0.195" (4.95mm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Current Rating: 4.7A per contact
  • Temperature Range: -55°C to 125°C
