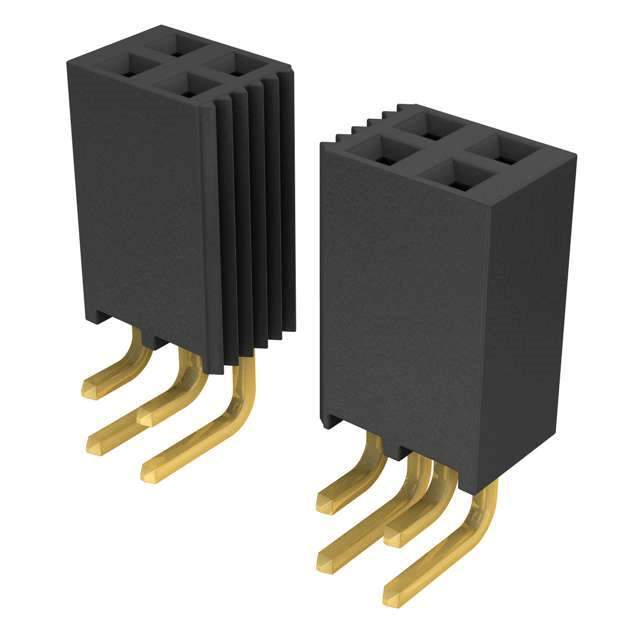

SSQ-117-02-G-D-RA Real Image
Same model may have multiple batches, images only for reference.

SSQ-117-02-G-D-RA

Part No SSQ-117-02-G-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSQ-117-02-G-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSQ
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 34
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.195" (4.95mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Voltage Rating 465VAC, 655VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSQ-117
Other Names SAM1186-17
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1290388-SSQ-117-02-G-D-RA
Ultra Librarian 3D Model Ultra Librarian SSQ-117-02-G-D-RA CAD Model

Description

The SSQ series connector is a rectangular connector with a receptacle type connector and a forked contact type.

  • Connector Type: receptacle
  • Contact Type: forked
  • Positions: 34
  • Positions Loaded: all
  • Rows: two
  • Fastening Type: push-pull
  • Mounting Type: through-hole and right-angle
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Color: black
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: gold for mating and gold for post
  • Contact Finish Thickness: 20.0µin (0.51µm) for mating and 3.00µin (0.076µm) for post
  • Voltage Rating: 465VAC and 655VDC
  • Operating Temperature Range: -55°C ~ 125°C
  • Current Rating: -
