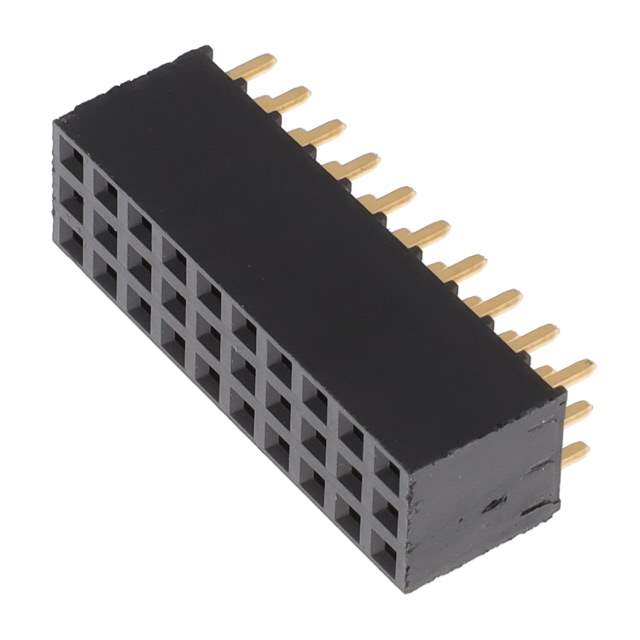

Name: SSQ-110-01-G-T
Brand: Samtec Inc.
SKU: 1289843
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSQ
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	3
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.104" (2.64mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Voltage Rating	465VAC, 655VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SSQ-110
Standard Package	1
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1289843-SSQ-110-01-G-T
Ultra Librarian 3D Model	Ultra Librarian SSQ-110-01-G-T CAD Model

Description

The SSQ-110-01-G-T Rectangular Connectors - Headers, Receptacles, Female Sockets is part of the SSQ series and has 30 positions.

Series: SSQ
Positions: 30
Connector Type: Receptacle
Contact Type: Forked
Contacts Loaded: Yes
Rows: 3
Termination: Solder
Fastening Type: Push-Pull
Packaging: Bulk
Contact Material: Phosphor Bronze
Voltage Rating: 465VAC, 655VDC
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch-Mating: 0.100 inches (2.54mm)
Contact Finish-Mating: Gold, 20.0μin (0.51μm)
Contact Finish-Post: Gold, 3.00μin (0.076μm)
Insulation Color: Black
Mounting Type: Through Hole
Row Spacing-Mating: 0.100 inches (2.54mm)
Contact Length-Post: 0.104 inches (2.64mm)
Insulation Height: 0.335 inches (8.51mm)
Contact Shape: Square
Temperature Range: -55°C ~ 125°C
MSL Level: Not Applicable
HTSUS: 8536.69.4040
Manufacturer: Samtec Inc.
Other Names: SAM1182-27
Base Product Number: SSQ-110
