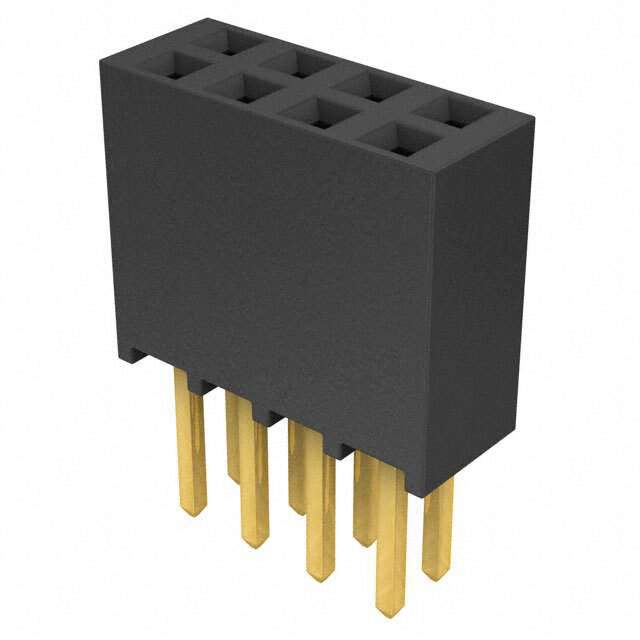

Name: SSQ-104-02-G-D
Brand: Samtec Inc.
SKU: 1289345
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSQ
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.194" (4.93mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Voltage Rating	465VAC, 655VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SSQ-104
Other Names	SAM1185-04
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1289345-SSQ-104-02-G-D
Ultra Librarian 3D Model	Ultra Librarian SSQ-104-02-G-D CAD Model

Description

The SSQ series rectangular connector is a high-quality board-to-board or cable connector designed for use in electronic applications.

Style: Board-to-board or Cable
Pitch: 0.100" (2.54mm)
Number of Positions: 8
Type: Headers, Receptacles, and Female Sockets
Connector Type: Receptacle
Contact Type: Forked
Contact Finish: Gold
Contact Finish Thickness: 20.0µin (0.51µm)
Voltage Rating: 465VAC and 655VDC
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Contact Finish Post: Gold
Contact Finish Thickness Post: 3.00µin (0.076µm)
Base Product Number: SSQ-104
ECCN Designation: EAR99
