Same model may have multiple batches, images only for reference.

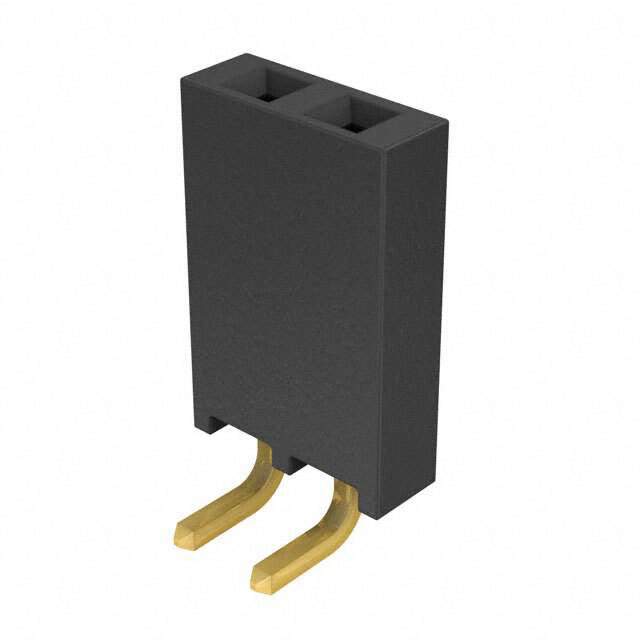

SSQ-102-02-G-S-RA Real Image
Same model may have multiple batches, images only for reference.

SSQ-102-02-G-S-RA

Part No SSQ-102-02-G-S-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSQ-102-02-G-S-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSQ
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 2
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Voltage Rating 465VAC, 655VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSQ-102
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1289191-SSQ-102-02-G-S-RA
Ultra Librarian 3D Model Ultra Librarian SSQ-102-02-G-S-RA CAD Model

Description

This is a rectangular connector with a receptacle connector type and forked contact type.

  • Connector Type: receptacle
  • Contact Type: forked
  • Pitch-Mating: 0.100 inches
  • Insulation Material: liquid crystal polymer (LCP)
  • Contact Finish-Mating: gold with a thickness of 20.0µin (0.51µm)
  • Contact Finish-Post: gold with a thickness of 3.00µin (0.076µm)
  • Mounting Type: through-hole, right angle
  • Temperature Range Operating: -55°C to 125°C
  • Voltage Rating: 465VAC and 655VDC
  • Style: board to board or cable
  • Contact Shape: square
  • Material Flammability Rating: UL94 V-0
  • REACH: unaffected
