Same model may have multiple batches, images only for reference.

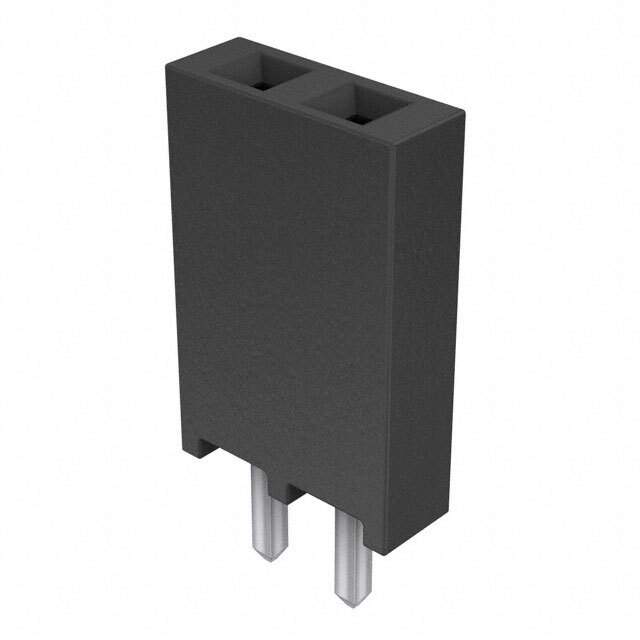

SSQ-102-01-S-S Real Image
Same model may have multiple batches, images only for reference.

SSQ-102-01-S-S

Part No SSQ-102-01-S-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSQ-102-01-S-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSQ
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 2
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.104" (2.64mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 465VAC, 655VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSQ-102
Other Names SAM1182-02
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1289182-SSQ-102-01-S-S
Ultra Librarian 3D Model Ultra Librarian SSQ-102-01-S-S CAD Model

Description

The Samtec Inc. 1289182-SSQ-102-01-S-S is an SSQ series connector with 2 positions.

  • Series: SSQ
  • Positions: 2
  • Packaging: bulk
  • Connector Type: receptacle
  • Contact Type: forked
  • Positions Loaded: All
  • Row: 1
  • Termination Type: solder
  • Fastening Type: push-pull
  • Contact Material: phosphor bronze
  • Voltage Rating: 465VAC, 655VDC
  • Mounting: through a hole
  • Insulation Material: liquid crystal polymer (LCP)
  • Style: board to board or cable
  • Pitch - Mating: 0.100" (2.54mm)
  • Contact Finish - Mating: gold
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Contact Finish - Post: tin
  • Insulator Color: black
  • Mounting Type: through hole
  • Contact Length - Post: 0.104" (2.64mm)
  • Insulation Height: 0.335" (8.51mm)
  • Contact Shape: square
  • Operating Temperature Range: -55°C to 125°C
  • ECCN: EAR99 compliant
  • MSL Level: not applicable
  • HTSUS Code: 8536.69.4040
  • Manufacturer Part Number: SSQ-102
  • Other Names: SAM1182-02
