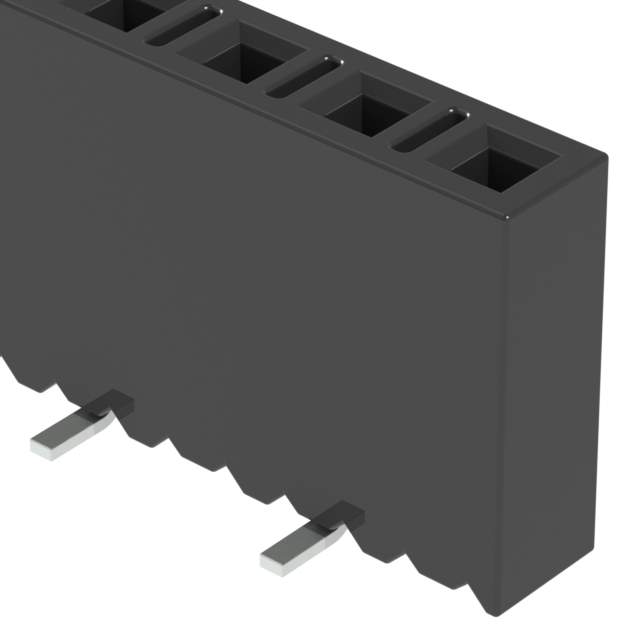

SSM-115-L-SV Real Image
Same model may have multiple batches, images only for reference.

SSM-115-L-SV

Part No SSM-115-L-SV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSM-115-L-SV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tube
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 15
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-115
Other Names SAM1148-15
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291824-SSM-115-L-SV
Ultra Librarian 3D Model Ultra Librarian SSM-115-L-SV CAD Model

Description

The Samtec Inc. SSM series offers a reliable and high-performance solution for your board-to-board or cable connections.

  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Configuration: Pass-Through
  • Positions: 15
  • Rows: One
  • Positions Loaded: All
  • Fastening Type: Push-Pull
  • Termination Method: Solder
  • Contact Material: Phosphor Bronze
  • Voltage: 405VAC and 572VDC
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Color: Black
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 10.0µin (0.25µm)
  • Post Finish: Tin
  • Operating Temperature Range: -55°C to 125°C
  • Compliance: RoHS compliant and unaffected by REACH
