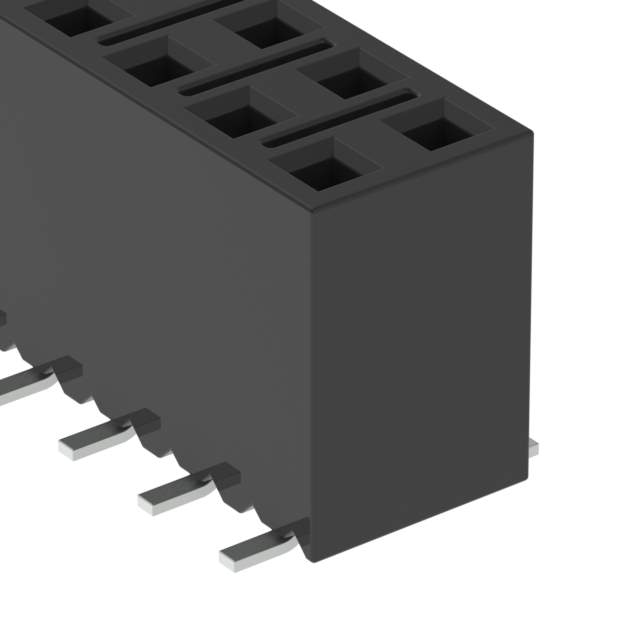

SSM-110-L-DV-LC-K-TR Real Image
Same model may have multiple batches, images only for reference.

SSM-110-L-DV-LC-K-TR

Part No SSM-110-L-DV-LC-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSM-110-L-DV-LC-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tape & Reel
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Features Board Lock, Pick and Place
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-110
Other Names SSM-110-L-DV-LC-K-TR,SAM14611CT,SAM14611TR,SAM14611DKR
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291905-SSM-110-L-DV-LC-K-TR
Ultra Librarian 3D Model Ultra Librarian SSM-110-L-DV-LC-K-TR CAD Model

Description

The SSM series pass-through receptacle connector is a rectangular connector that is designed for board to board or cable applications.

  • Positions: 20 positions.
  • Pitch: 0.100" (2.54mm).
  • Insulation Material: Liquid crystal polymer (LCP).
  • Contact Material: Phosphor bronze, with a gold finish for mating and a tin finish for post.
  • Temperature Range: Operates in a temperature range of -55°C to 125°C.
  • Voltage Rating: 405VAC and 572VDC.
  • Mounting: Surface mount.
  • Row Spacing: 0.100" (2.54mm).
  • Contact Shape: Square.
  • Contact Type: Female socket.
  • Termination: Solder.
  • Fastening Type: Push-pull.
  • Package: Tape and reel.
  • Current Rating: 5.2A per contact.
