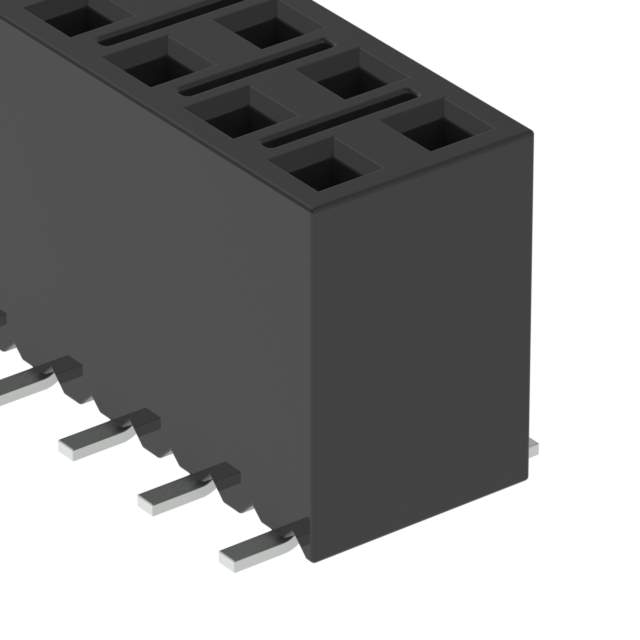

Same model may have multiple batches, images only for reference.

SSM-108-L-DV-LC-TR

Name: SSM-108-L-DV-LC-TR
Brand: Samtec Inc.
SKU: 1291867
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSM-108-L-DV-LC-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSM-108-L-DV-LC-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tape & Reel (TR)
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Lock
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-108
Standard Package	275
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291867-SSM-108-L-DV-LC-TR
Ultra Librarian 3D Model	Ultra Librarian SSM-108-L-DV-LC-TR CAD Model

Alternative Products

Description

The SSM series from Samtec Inc. is a rectangular connector that features a receptacle, pass-through connector type with female sockets contact.

Pitch-Mating: 0.100" (2.54mm)
Row Spacing-Mating: 0.100" (2.54mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Voltage Rating: 405VAC and 572VDC
Current Rating (amps): 5.2A per contact
Temperature Range: -55°C to 125°C
Package: Tape & Reel (TR)
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
