Same model may have multiple batches, images only for reference.

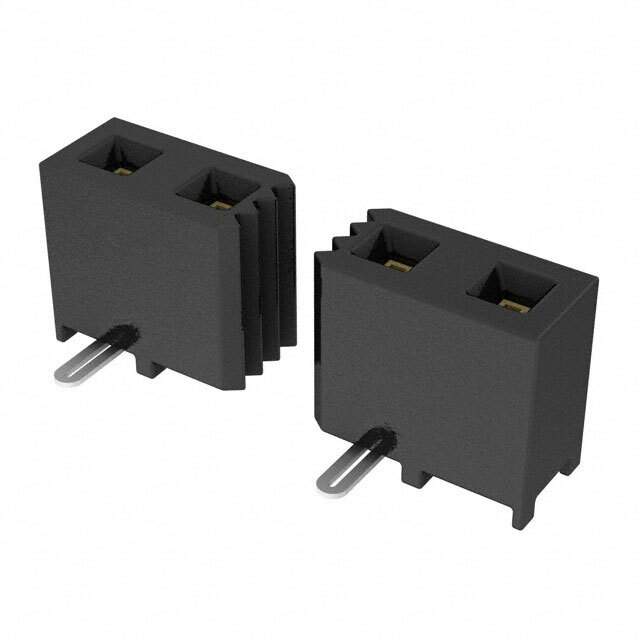

SMM-110-02-F-S-P Real Image
Same model may have multiple batches, images only for reference.

SMM-110-02-F-S-P

Part No SMM-110-02-F-S-P
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SMM-110-02-F-S-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SMM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.140" (3.56mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Current Rating (Amps) 3.2A per Contact
Voltage Rating 350VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SMM-110
Standard Package 29
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285345-SMM-110-02-F-S-P
Ultra Librarian 3D Model Ultra Librarian SMM-110-02-F-S-P CAD Model

Description

The Samtec Inc. 1285345-SMM-110-02-F-S-P is a female socket receptacle connector that features a pick-and-place option.

  • Positions: 10
  • Rows: Single
  • Termination: Solder
  • Fastening Type: Push-pull
  • Contact Material: Beryllium Copper
  • Voltage Rating: 350VAC
  • Mounting: Surface Mount
  • Application: Board-to-board or Cable
  • Pitch: 0.079" (2.00mm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Finish (Mating): Gold
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Contact Finish (Post): Tin
  • Insulation Color: Black
  • Temperature Range: -55°C to 125°C
  • Current Rating: 3.2A per contact
  • RoHS3 Compliant: Yes
  • Standard Package: 29
  • Manufacturer: Samtec Inc.
