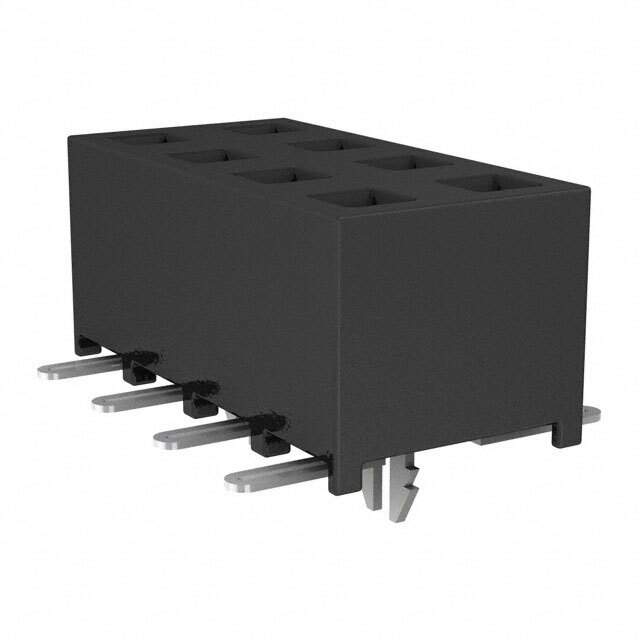

The Tiger Eye™ SMM series from Samtec Inc. is a rectangular connector with a receptacle connector type that has a female socket contact type.

• Manufacturer: Samtec Inc.
• Series: Tiger Eye™ SMM
• Connector Type: Receptacle
• Contact Type: Female Socket
• Pitch-Mating: 0.079” (2.00mm)
• Row Spacing-Mating: 0.079” (2.00mm)
• Model: SMM-104-02-S-D-LC
• Positions: 8
• Rows: 2
• Positions Loaded: All
• Voltage Rating: 350VAC
• Current Rating: 3.2A per contact
• Insulation Material: Liquid Crystal Polymer (LCP)
• Contact Material: Beryllium Copper
• Flammability Rating: UL94 V-0
• Mounting Style: Board-to-Board or Cable
• Fastening Type: Push-Pull
• Board Lock: Yes
• Termination: Solder
• Contact Finish-Mating: Gold
• Contact Finish-Post: Tin
• Insulation Color: Black
• Insulation Height: 0.140” (3.56mm)
• Temperature Range: -55°C to 125°C
