Same model may have multiple batches, images only for reference.

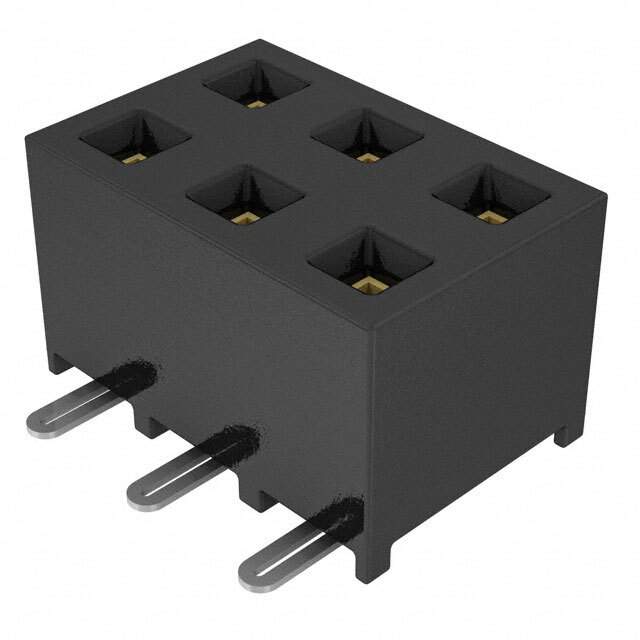

SMM-103-02-S-D-K-TR

Name: SMM-103-02-S-D-K-TR
Brand: Samtec Inc.
SKU: 1285366
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMM-103-02-S-D-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMM-103-02-S-D-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SMM
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.140" (3.56mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	3.2A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SMM-103
Other Names	SMM-103-02-S-D-K-TR,SAM14544TR,SAM14544DKR,SAM14544CT
Standard Package	825
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285366-SMM-103-02-S-D-K-TR
Ultra Librarian 3D Model	Ultra Librarian SMM-103-02-S-D-K-TR CAD Model

Alternative Products

Description

The SMM-103-02-S-D-K-TR is a Tiger Eye™ SMM series rectangular connector that is used for headers, receptacles, and female sockets.

Series: Tiger Eye™ SMM
Total Positions: 6
Application: Board-to-board or cable
Package: Tape and Reel
Pitch: 0.079" (2.00mm)
Current Rating: 3.2A per contact
Manufacturer: Samtec Inc.
