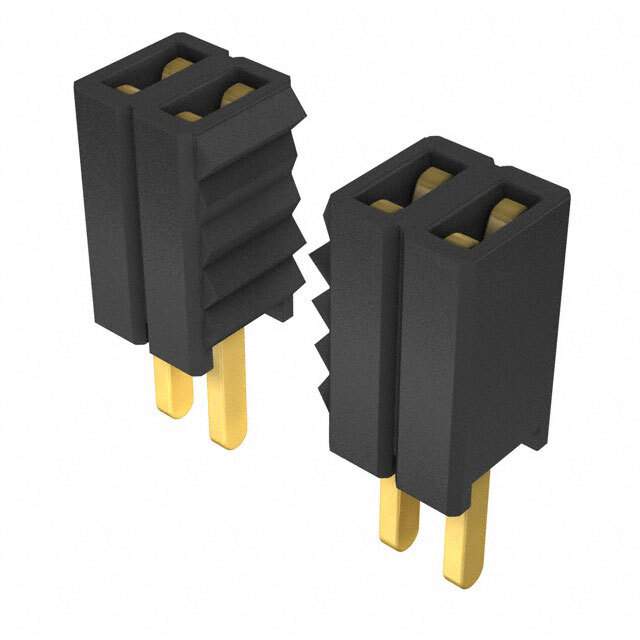

Same model may have multiple batches, images only for reference.

SLM-115-01-G-S

Get a Quote

Part No	SLM-115-01-G-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 15POS 0.05 GOLD PCB / 15 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Datasheet	SLM-115-01-G-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SLM
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	15
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Rectangular
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SLM-115
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM9946
Standard Package	30
Win Source Part Number	1175855-SLM-115-01-G-S
Ultra Librarian 3D Model	Ultra Librarian SLM-115-01-G-S CAD Model

Description

The Samtec Inc. SLM-115-01-G-S is a female socket connector that is part of the SLM series. SLM-115-01-G-S from Samtec Inc.

Connector Type: Female Socket
Series: SLM
Number of Positions: 15
Connection Type: Board-to-Board
Contact Material: Phosphor Bronze
Contact Finish: Gold
Insulation Material: Liquid Crystal Polymer (LCP)
Mounting Type: Through-Hole
Temperature Range: -55°C to 125°C
