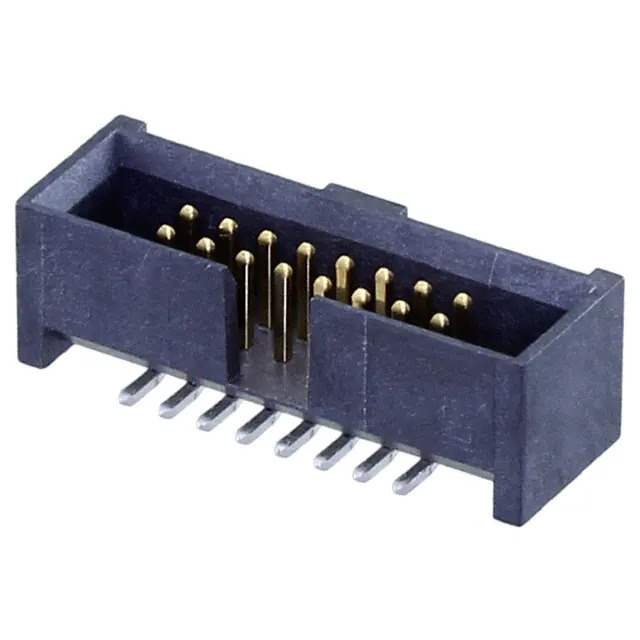

SHF-108-01-L-D-SM

Name: SHF-108-01-L-D-SM
Brand: Samtec Inc.
SKU: 933376
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SHF-108-01-L-D-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 16POS 1.27MM / Connector Header Surface Mount 16 position 0.050" (1.27mm)
Datasheet	SHF-108-01-L-D-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	SHF
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.210" (5.33mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	SHF-108
Standard Package	34 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	933376-SHF-108-01-L-D-SM
Ultra Librarian 3D Model	Ultra Librarian SHF-108-01-L-D-SM CAD Model

Alternative Products

Description

The SHF series connector, part number 933376-SHF-108-01-L-D-SM, is a male header connector from Samtec Inc.

Positions: 16
Rows: 2
Pitch: 0.050" (1.27mm)
Mounting Type: Surface mount
Features: Keying slot
Contact Type: Male pin
Contact Material: Phosphor bronze
Contact Finish: Gold, 10.0µin (0.25µm)
Insulation Material: Liquid crystal polymer (LCP)
Color: Black
Temperature Range: -55°C to 125°C
Current Rating: 3A
Suitable for: Board to cable/wire connections
