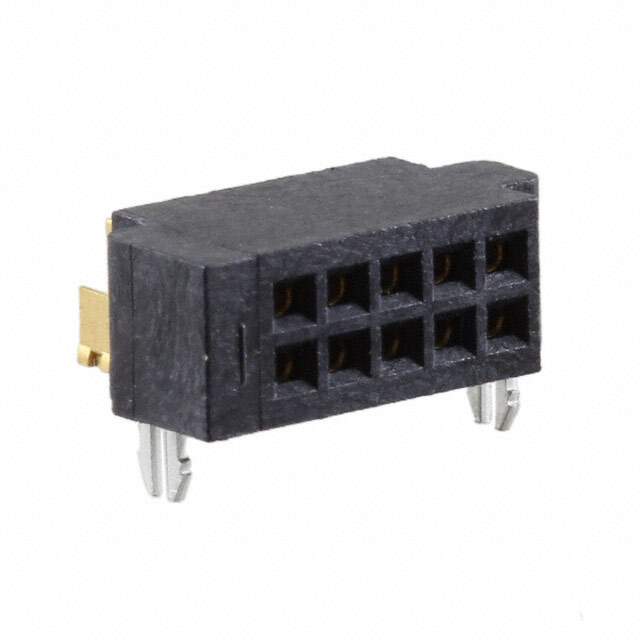

Same model may have multiple batches, images only for reference.

SFMH-105-02-L-D-LC

Name: SFMH-105-02-L-D-LC
Brand: Samtec Inc.
SKU: 1285451
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SFMH-105-02-L-D-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFMH-105-02-L-D-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFMH
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.135" (3.43mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Board Lock
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	SFMH-105
Other Names	SAM10705,SFMH-105-02-L-D-LC
Standard Package	63
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285451-SFMH-105-02-L-D-LC
Ultra Librarian 3D Model	Ultra Librarian SFMH-105-02-L-D-LC CAD Model

Alternative Products

Description

The SFMH-105-02-L-D-LC is a rectangular connector from Samtec Inc.

Win Source Part Number: 1285451-SFMH-105-02-L-D-LC
Series: Tiger Eye™ SFMH
Positions: 10
Feature: Board Lock
Connector Type: Receptacle
Contact Type: Female Socket
MSL Level: 1 (Unlimited)
ECCN: EAR99
REACH: Unaffected
HTSUS Code: 8536.69.4040
