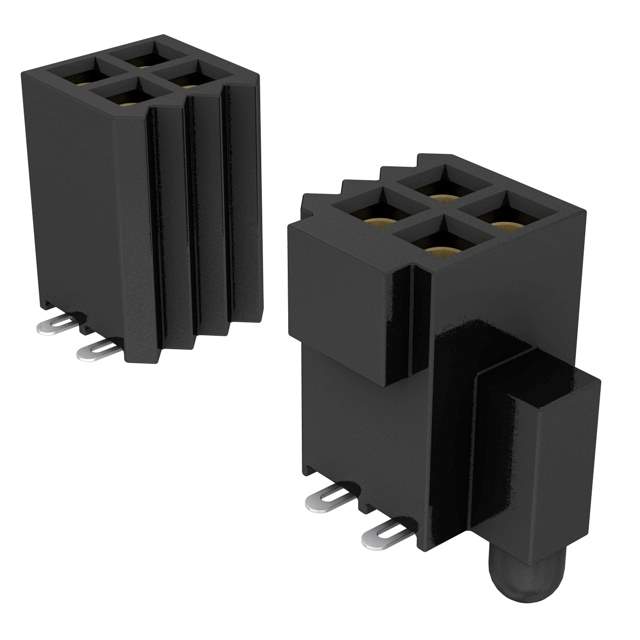

The 112243-SFM-140-L2-S-D-A connector is a high-quality board to board or cable connector designed and manufactured by Samtec Inc.

• Positions: 80
• Pitch: 0.050" (1.27mm)
• Suitable for: Use in a wide range of applications
• Features: Board guide and receptacle
• Contact Type: Female socket
• Positions Loaded: All
• Rows: Two
• Termination: Solder
• Fastening Type: Push-pull
• Voltage Rating: 250VAC
• Current Rating: 3.2A per contact
• Material Flammability Rating: UL94 V-0
• Mounting Type: SMD (SMT)
• Insulation Material: Liquid crystal polymer (LCP)
• Contact Finish of Mating: Gold, with a contact finish thickness of 30μin (0.76μm)
• Contact Finish of the Post: Tin
• Insulation Color: Black
• Package: Tube/rail
• Product Popularity: Medium
