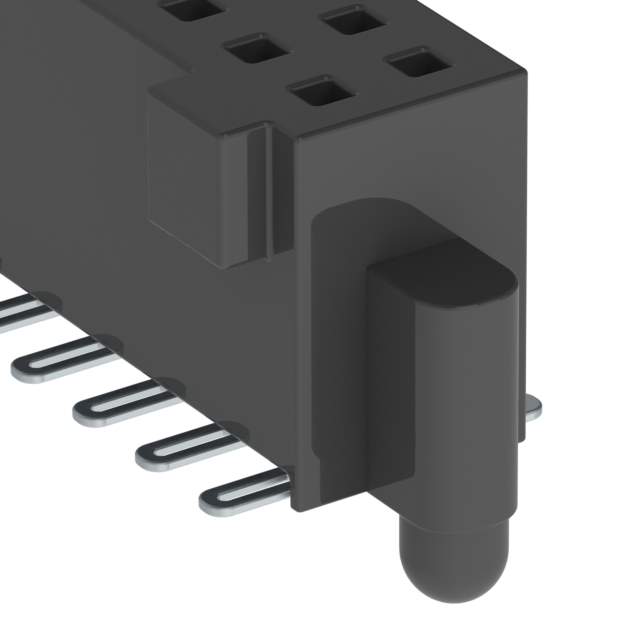

The Samtec Inc. electronic component with Win Source Part Number 1287396-SFM-130-T2-S-D-A-K-TR is a rectangular connector in the headers, receptacles, female sockets category.

• Series: Tiger Eye™ SFM
• Positions: 60
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tape and Reel (TR)
• Contact Material: Phosphor Bronze
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to Board or Cable
• Pitch-Mating: 0.050" (1.27mm)
• Contact Finish-Mating: Gold
• Thickness-Mating: 30.0μin (0.76μm)
• Contact Finish-Post: Tin
• Insulation Color: Black
• Row Spacing-Mating: 0.050" (1.27mm)
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Temperature Range: -55°C to 125°C
• MSL Level: 1 (unlimited)
• Current Rating: 3.2A per contact
• HTSUS: 8536.69.4040
