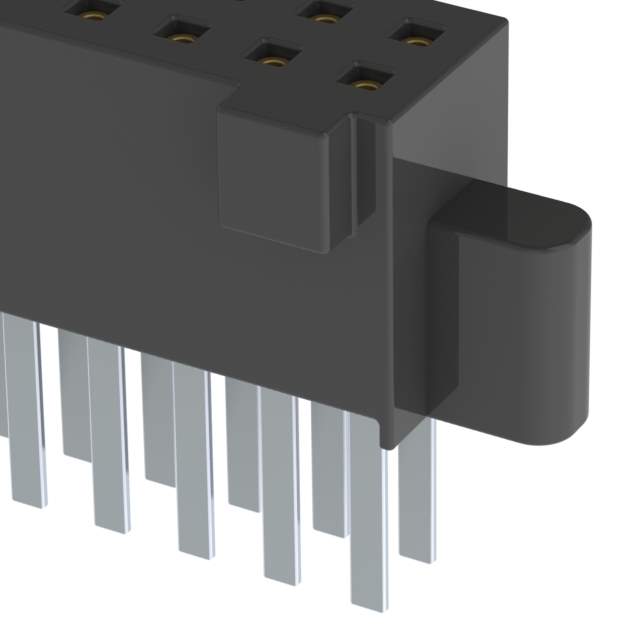

Name: SFM-130-T1-L-D-K-TR
Brand: Samtec Inc.
SKU: 1287390
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tape & Reel (TR)
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	60
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features	Pick and Place
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SFM-130
Standard Package	125
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287390-SFM-130-T1-L-D-K-TR
Ultra Librarian 3D Model	Ultra Librarian SFM-130-T1-L-D-K-TR CAD Model

Description

This rectangular connector with Win Source Part Number 1287390-SFM-130-T1-L-D-K-TR is a top-notch product from Samtec Inc.

Category: Headers, Receptacles, Female Sockets
Positions: 60
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: Two
Termination: Solder
Fastening Type: Push-Pull
Style: Board to Board or Cable
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 10.0µin (0.25µm)
Voltage Rating: 250VAC
Current Rating: 3.2A per contact
HTSUS Code: 8536.69.4040
