Same model may have multiple batches, images only for reference.

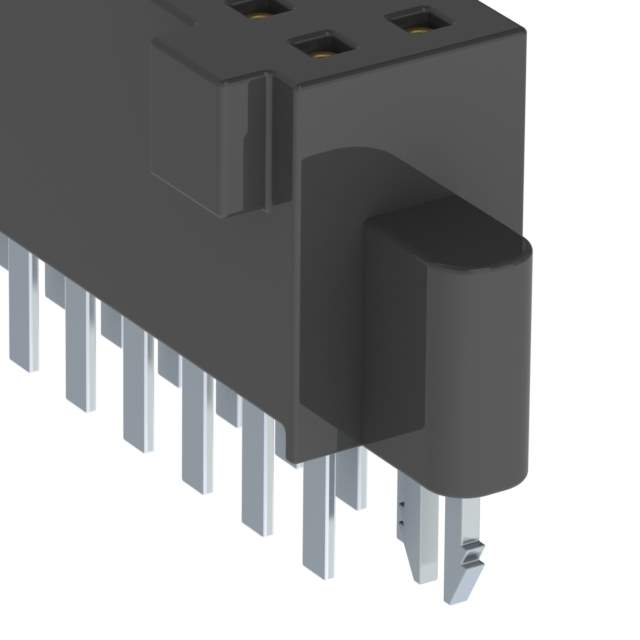

SFM-130-L3-S-D-LC Real Image
Same model may have multiple batches, images only for reference.

SFM-130-L3-S-D-LC

Part No SFM-130-L3-S-D-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFM-130-L3-S-D-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 60
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.075" (1.91mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features Board Lock
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-130
Standard Package 13
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287054-SFM-130-L3-S-D-LC
Ultra Librarian 3D Model Ultra Librarian SFM-130-L3-S-D-LC CAD Model

Description

The Tiger Eye™ SFM series features a 60-position receptacle connector with a push-pull fastening mechanism.

  • Positions: 60
  • Connector Type: Receptacle
  • Fastening: Push-Pull
  • Application: Board to board or cable
  • Pitch: 0.050 inches (1.27mm)
  • Contact Type: Female Sockets
  • Termination: Soldering
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold
  • Current Rating: 3.2A per contact
  • Voltage Rating: 250VAC
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Mounting: Through Hole
  • Contact Shape: Square
  • Contact Length (Post): 0.075 inches (1.91mm)
  • Insulation Height: 0.180 inches (4.57mm)
  • Material Flammability Rating: UL94 V-0
  • Feature: Board Lock
