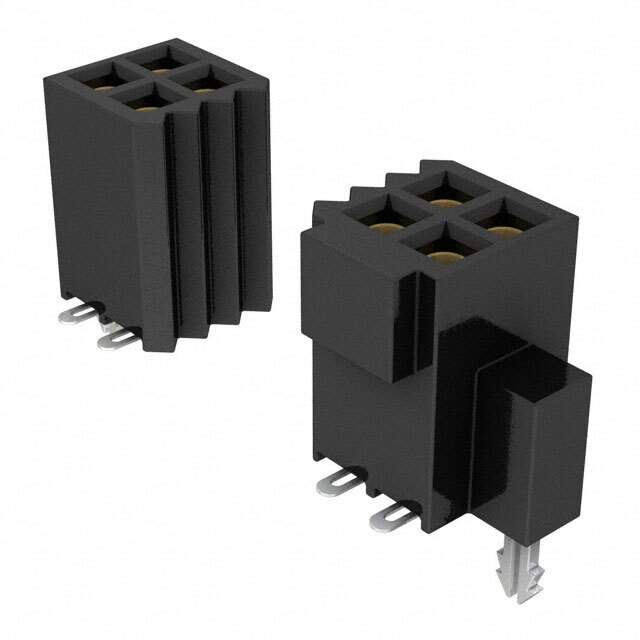

Name: SFM-125-L2-S-D-LC-P-TR
Brand: Samtec Inc.
SKU: 1287357
Availability: InStock

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tape & Reel (TR)
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	50
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features	Board Lock, Pick and Place
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-125
Standard Package	425
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287357-SFM-125-L2-S-D-LC-P-TR
Ultra Librarian 3D Model	Ultra Librarian SFM-125-L2-S-D-LC-P-TR CAD Model

Description

The Samtec Tiger Eye™ SFM 1287357-SFM-125-L2-S-D-LC-P-TR is a rectangular connector that is used in a variety of applications.

Connector Type: Receptacle
Features: Board Lock, Pick and Place
Contact Type: Female Socket
Positions Loaded: All
Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Packaging: Tape and Reel (TR)
Contact Material: Beryllium Copper
Voltage Rating: 250VAC
Current Rating: 3.2A per Contact
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch: 0.050 inches (1.27mm)
Contact Finish: Gold-Plated
Contact Finish Thickness: 30.0μin (0.76μm) for mating and tin for post
Color: Black
Row Spacing: 0.050 inches (1.27mm)
Insulation Height: 0.185 inches (4.70mm)
Shape: Square
Temperature Range: -55°C to 125°C
