Name: SFM-125-02-S-D-N-LC-TR
Brand: Samtec Inc.
SKU: 1287346
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tape & Reel (TR)
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	50
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features	Board Lock
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-125
Standard Package	125
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287346-SFM-125-02-S-D-N-LC-TR
Ultra Librarian 3D Model	Ultra Librarian SFM-125-02-S-D-N-LC-TR CAD Model

Description

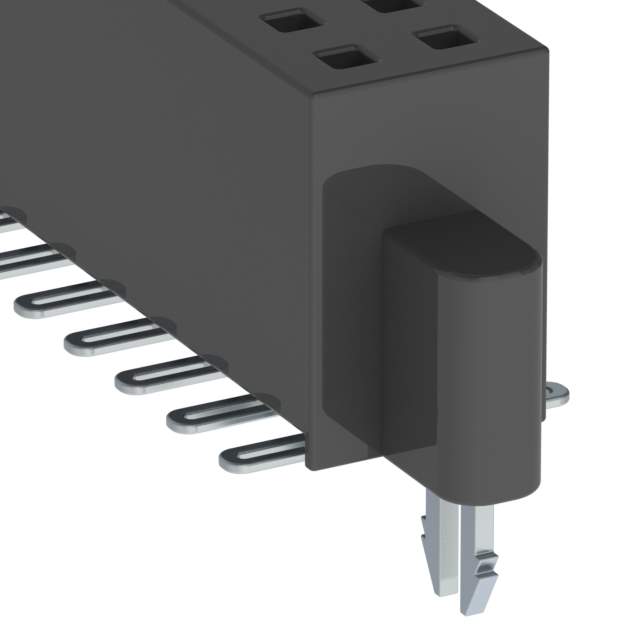

This rectangular connector is a part of the Tiger Eye™ SFM series and has 50 positions.

Feature: Board Lock
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: Two
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Voltage Rating: 250VAC
Mounting Type: SMD (SMT)
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch Mating: 0.050" (1.27mm)
Contact Finish: Gold
Thickness: 30.0µin (0.76µm)
Contact Finish Post: Tin
Ideal For: Board to Board or Cable Connections in Electronic Devices and Equipment
