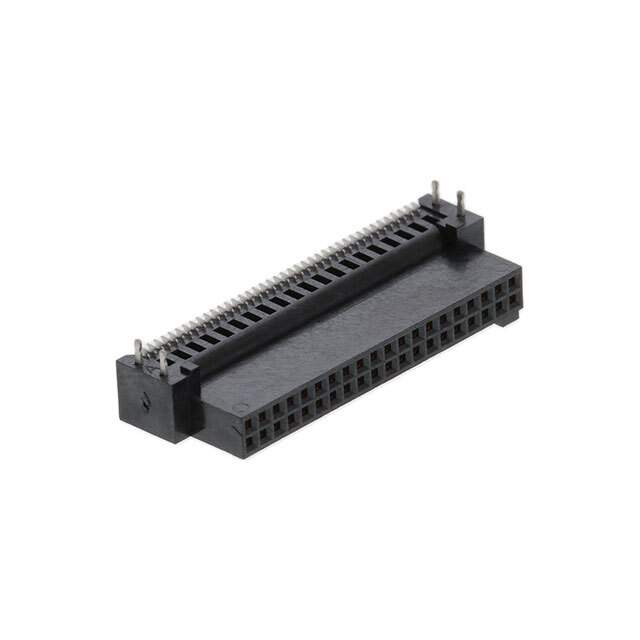

SFM-120-02-L-DH-TR Real Image
Same model may have multiple batches, images only for reference.

SFM-120-02-L-DH-TR

Part No SFM-120-02-L-DH-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFM-120-02-L-DH-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Tape & Reel
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.183" (4.65mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-120
Other Names SAM14509DKR,SAM14509TR,SAM14509CT,SFM-120-02-L-DH-TR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287544-SFM-120-02-L-DH-TR
Ultra Librarian 3D Model Ultra Librarian SFM-120-02-L-DH-TR CAD Model

Description

The Tiger Eye™ SFM series from Samtec Inc. presents a 40-position female socket receptacle connector with a push-pull fastening type and a board guide feature.

  • Connections: board-to-board or cable style
  • Pitch: 0.050" (1.27mm)
  • Contact Material: beryllium copper
  • Voltage Rating: 250VAC
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Height: 0.183" (4.65mm)
  • Contact Finish for Mating: gold with a thickness of 10.0µin (0.25µm)
  • Contact Finish for Post: tin
  • Mounting Type: surface mount and right angle
  • Operating Temperature Range: from -55°C to 125°C
