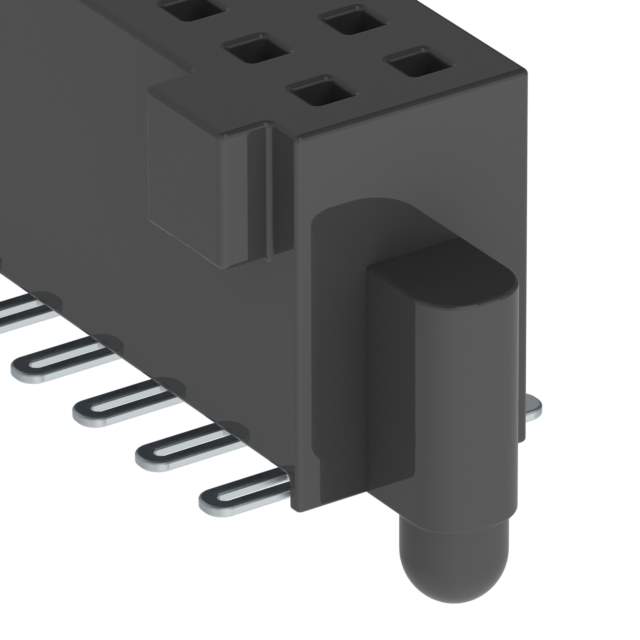

The Samtec Inc. 1286827-SFM-110-02-H-D-A is a rectangular connector that falls under the 'Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets' category.

• Series: Tiger Eye™ SFM
• Base Product Number: SFM-110
• Number of Positions: 20
• Connector Type: Receptacle
• Contact Type: Female socket
• Positions Loaded: All
• Termination: Solder
• Fastening Type: Push-pull
• Package: Tube
• Contact Material: Beryllium copper
• Voltage Rating: 250VAC
• Insulation Material: Liquid crystal polymer (LCP)
• Style: Board to board or cable
• Pitch-Mating: 0.050" (1.27mm)
• Contact Finish-Mating: Gold
• Contact Finish Thickness-Mating: 30.0µin (0.76µm)
• Contact Finish-Post: Gold
• Contact Finish Thickness-Post: 3.00µin (0.076µm)
• Insulation Color: Black
• Mounting Type: SMD (SMT)
• Row Spacing-Mating: 0.050" (1.27mm)
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Temperature Range: -55°C to 125°C
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• Current Rating (Amps): 3.2A per contact
• HTSUS: 8536.69.4040
• Other Names: SAM15787 and SFM-110-02-H-D-A
