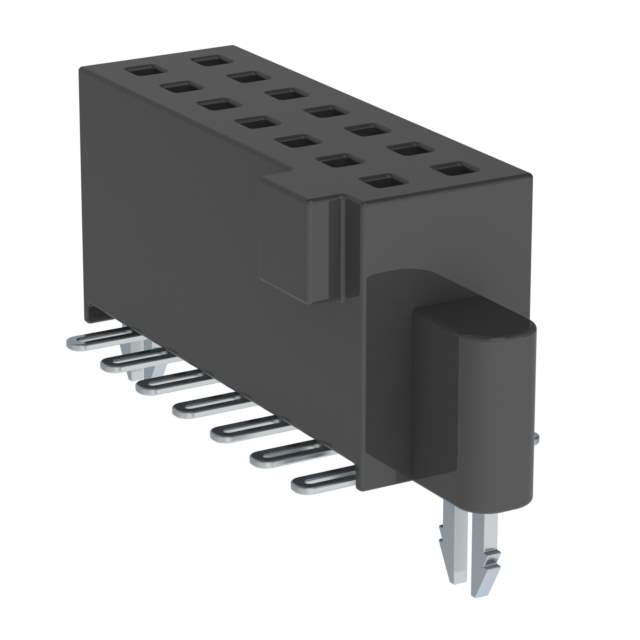

The Tiger Eye™ SFM series from Samtec Inc. presents the SFM-107-02-L-D-LC-K-TR receptacle connector which features 14 positions, 2 rows, and board lock and pick and place features.

• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions: 14
• Rows: 2
• Features: Board Lock, Pick and Place
• Contact Material: Beryllium Copper
• Contact Finish (Mating): Gold with a thickness of 10.0µin (0.25µm)
• Contact Finish (Post): Tin
• Voltage Rating: 250VAC
• Current Rating: 3.2A per contact
• Style: Board-to-board or cable
• Pitch: 0.050" (1.27mm)
• Mated Stacking Height Range: 6.15mm to 11.76mm
• Temperature Range: -55°C to 125°C
• Package: Tape & Reel (TR)
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black
• Flammability Rating: UL94 V-0
• ECCN: EAR99
