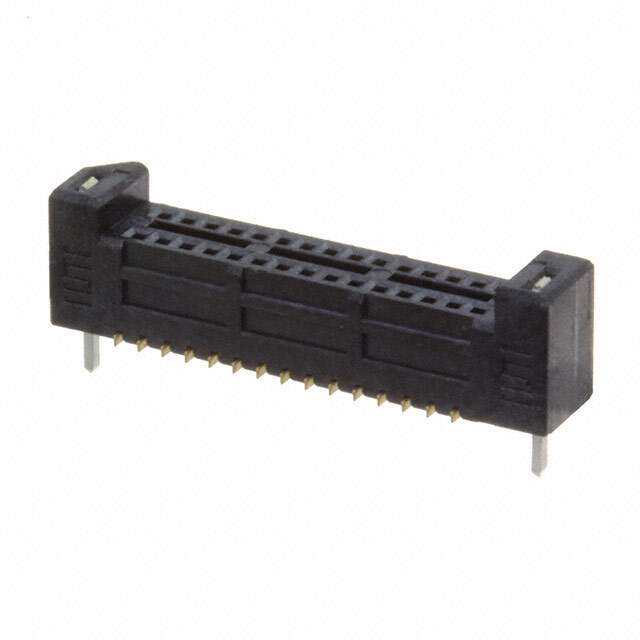

Same model may have multiple batches, images only for reference.

SEML-115-02-03.0-H-D-WT

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SEML-115-02-03.0-H-D-WT
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEML-115-02-03.0-H-D-WT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SEML
Package	Tray
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.031" (0.80mm)
Number of Rows	2
Row Spacing - Mating	0.125" (3.18mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.177" (4.50mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Features	Solder Retention
Current Rating (Amps)	2.6A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	Flash
Base Product Number	SEML-115
Other Names	SAM11681,SEML-115-02-03.0-H-D-WT
Standard Package	102
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287946-SEML-115-02-03.0-H-D-WT
Ultra Librarian 3D Model	Ultra Librarian SEML-115-02-03.0-H-D-WT CAD Model

Alternative Products

Description

The SEML-115-02-03.0-H-D-WT is a rectangular connector that belongs to the connectors, interconnects category.

Series: Tiger Eye™ SEML
Connector Type: Receptacle
Positions: 30
Solder Retention: Yes
Style: Board-to-board
Pitch-Mating: 0.031 inches (0.80mm)
Contact Finish-Mating: Gold
Finish Thickness: 30.0μin (0.76μm)
Current Rating: 2.6A per contact
ECCN: EAR99
