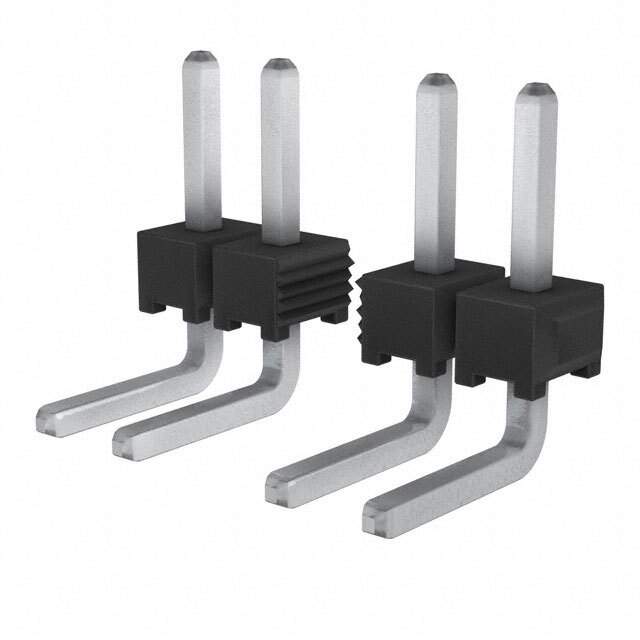

TMM-109-01-T-S-RA

Name: TMM-109-01-T-S-RA
Brand: Samtec Inc.
SKU: 1332826
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-109-01-T-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2MM TERMINAL STRIP / Connector Header Through Hole, Right Angle 9 position 0.079" (2.00mm)
Datasheet	TMM-109-01-T-S-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	9
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.079" (2.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 105°C
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-109
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM15326,TMM-109-01-T-S-RA-ND
Standard Package	1
Win Source Part Number	1332826-TMM-109-01-T-S-RA
Ultra Librarian 3D Model	Ultra Librarian TMM-109-01-T-S-RA CAD Model

Alternative Products

Description

The Samtec Inc. TMM-109-01-T-S-RA is a rectangular connector header with a pitch of 0.079" (2.00mm) and 9 number of positions.

Manufacturer: Samtec Inc.
Connector Type: Header
Pitch: 0.079" (2.00mm)
Positions: 9
Contact Type: Male pin
Termination: Solder
Fastening Type: Push-pull
Contact Material: Phosphor bronze
Voltage Rating: -
Mounting: Through hole, right angle
Insulation Material: Liquid crystal polymer (LCP)
Contact Finish: Tin
Temperature Range: -55°C ~ 105°C
Current Rating: 3.2A per contact
ECCN: EAR99
