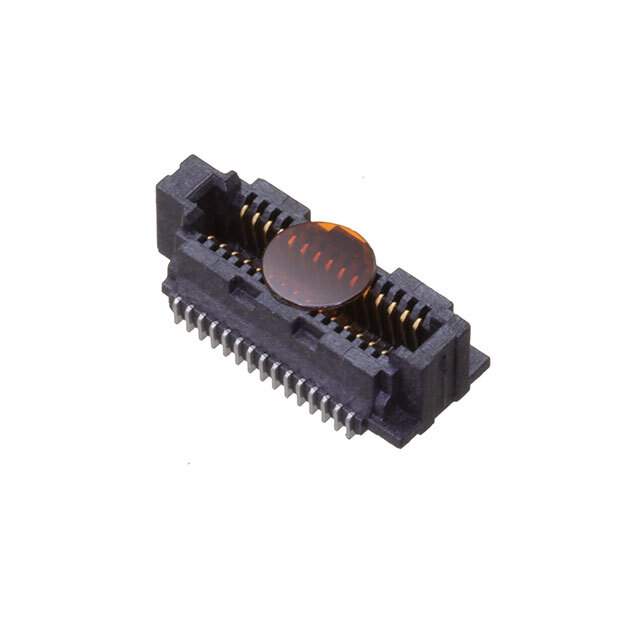

SS5-15-3.00-L-D-K-TR

Name: SS5-15-3.00-L-D-K-TR
Brand: Samtec Inc.
SKU: 1293968
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SS5-15-3.00-L-D-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SS5-15-3.00-L-D-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ SS5
Package	Tape & Reel
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	30
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	4mm, 4.5mm, 5.5mm
Height Above Board	0.112" (2.85mm)
Base Product Number	SS5-15
Other Names	SAM14972TR,SAM14972CT,SAM14972DKR,2266-SS5-15-3.00-L-D-K-TR,SS5-15-3.00-L-D-K-FR
Standard Package	1,225
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293968-SS5-15-3.00-L-D-K-TR
Ultra Librarian 3D Model	Ultra Librarian SS5-15-3.00-L-D-K-TR CAD Model

Alternative Products

Description

The Razor Beam™ SS5 is a series of rectangular connectors designed for board-to-board connections.

Series: Razor Beam™ SS5
Positions: 30
Pitch: 0.020" (0.50mm)
Connector Type: Socket with outer shroud contacts
Rows: 2
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Package: Tape & reel
Standard Package: 1,225
Mounting: SMD (SMT)
Height Above Board: 0.112" (2.85mm)
ECCN: EAR99
MSL Level: 1 (Unlimited)
REACH: Unaffected
