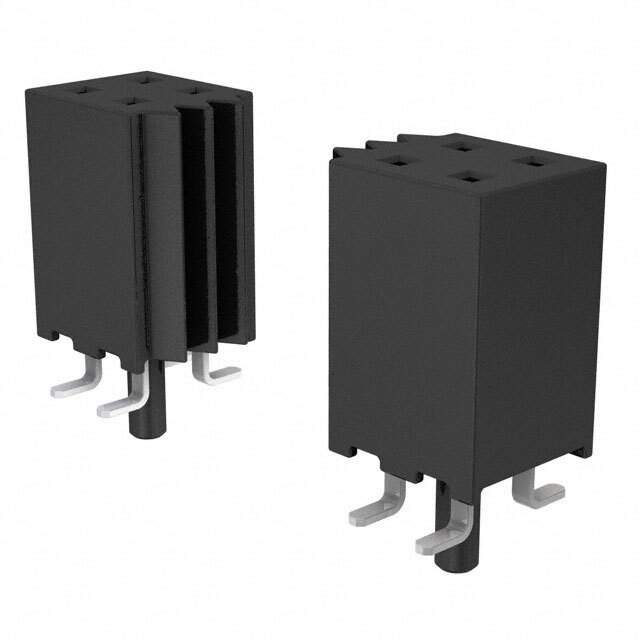

SQW-105-01-F-D-VS-A

Name: SQW-105-01-F-D-VS-A
Brand: Samtec Inc.
SKU: 1292225
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SQW-105-01-F-D-VS-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SQW-105-01-F-D-VS-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQW
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.300" (7.62mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Guide
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQW-105
Standard Package	54
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292225-SQW-105-01-F-D-VS-A
Ultra Librarian 3D Model	Ultra Librarian SQW-105-01-F-D-VS-A CAD Model

Alternative Products

Description

The SQW-105-01-F-D-VS-A is a high-performance rectangular connector from Samtec Inc.

Positions: 10
Type: Receptacle
Contact Type: Forked
Pitch: 0.079 inches (2.00mm)
Applications: Board to Board or Cable
Contact Finish: Gold
Voltage Rating: - volts
Insulation Material: Liquid Crystal Polymer (LCP)
Temperature Range: -55 degrees Celsius to 125 degrees Celsius
