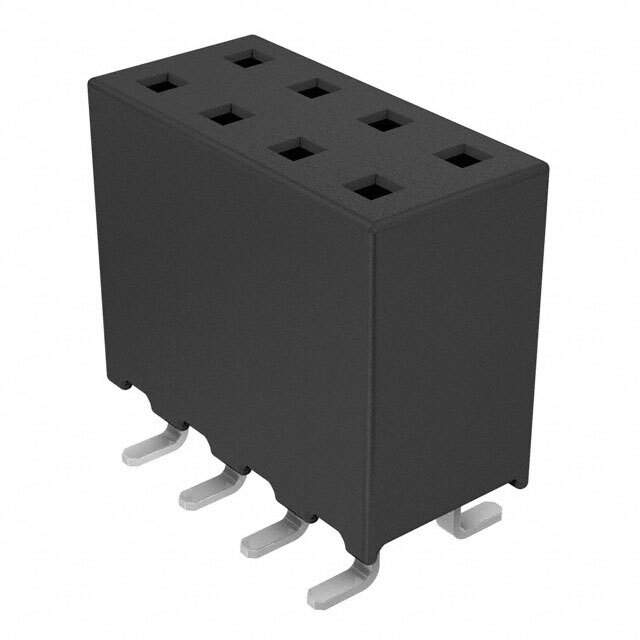

SQW-104-01-L-D-VS-P-TR

Part No SQW-104-01-L-D-VS-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SQW-104-01-L-D-VS-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQW
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.300" (7.62mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Current Rating (Amps) 3.8A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQW-104
Other Names SQW-104-01-L-D-VS-P-FR
Standard Package 450
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292295-SQW-104-01-L-D-VS-P-TR
Ultra Librarian 3D Model Ultra Librarian SQW-104-01-L-D-VS-P-TR CAD Model

Description

The SQW series receptacle connector is a rectangular connector designed for board-to-board or cable applications.

  • Pitch: 0.079 inches
  • Contact Shape: Square
  • Contact Material: Phosphor bronze
  • Insulation Material: Liquid crystal polymer (LCP)
  • Temperature Range: -55°C to 125°C
  • Contact Finish for Mating: Gold with a thickness of 10.0µin (0.25µm)
  • Contact Finish for Post: Tin
  • Mounting Type: Surface mount device (SMD)
  • Row Spacing for Mating: 0.079 inches (2.00mm)
  • Positions: 8
  • Positions Loaded: All
  • Voltage Rating: Not specified
  • Material Flammability Rating: UL94 V-0
