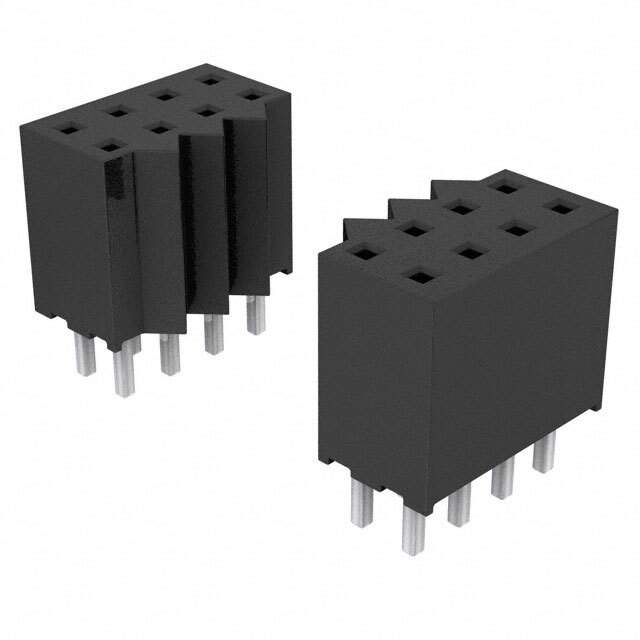

Name: SQT-130-01-L-Q
Brand: Samtec Inc.
SKU: 1292316
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQT
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	120
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	4
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.250" (6.35mm)
Contact Length - Post	0.090" (2.29mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	5.1A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQT-130
Standard Package	9
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292316-SQT-130-01-L-Q
Ultra Librarian 3D Model	Ultra Librarian SQT-130-01-L-Q CAD Model

Description

The SQT series connector is a receptacle type with 120 positions and 4 rows.

Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Contact Finish Thickness: 10.0µin (0.25µm)
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Style: Board to Board or Cable
Pitch of Mating: 0.079" (2.00mm)
Contact Finish: Gold
Contact Length of Post: 0.090" (2.29mm)
Insulation Height: 0.250" (6.35mm)
Temperature Range: -55°C ~ 125°C
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
Current Rating: 5.1A per contact
REACH Status: Unaffected
Manufacturer: Samtec Inc.
Base Product Number: SQT-130
