Same model may have multiple batches, images only for reference.

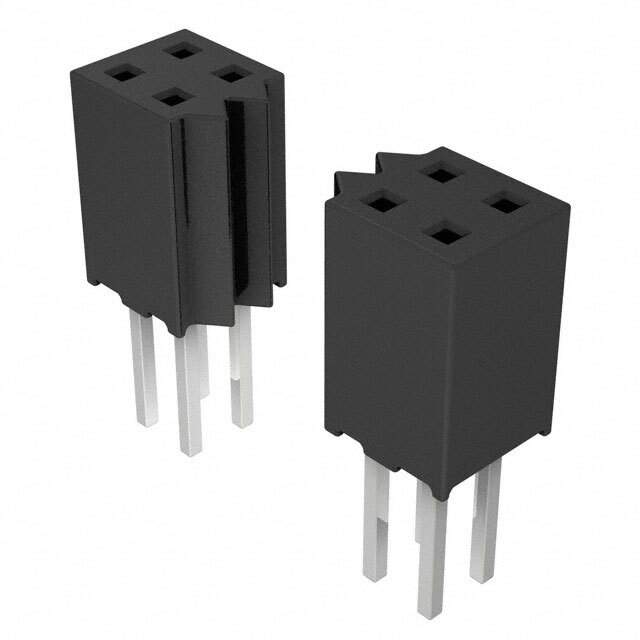

SQT-125-03-F-D Real Image
Same model may have multiple batches, images only for reference.

SQT-125-03-F-D

Part No SQT-125-03-F-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SQT-125-03-F-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQT
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 50
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Insulation Color Black
Insulation Height 0.250" (6.35mm)
Contact Length - Post 0.208" (5.28mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 5.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQT-125
Other Names SQT-125-03-F-D,SAM11870
Standard Package 11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292346-SQT-125-03-F-D
Ultra Librarian 3D Model Ultra Librarian SQT-125-03-F-D CAD Model

Description

The SQT series from Samtec Inc. offers a 50-position, 2-row receptacle connector with a push-pull fastening type.

  • Connection Style: Board-to-Board or Cable
  • Contact Type: Forked
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold Flash
  • Contact Finish (Post): Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Current Rating: 5.1A per contact
  • Temperature Range: -55°C to 125°C
  • Contact Length (Post): 0.208 inches (5.28mm)
  • Insulation Height: 0.250 inches (6.35mm)
  • Mounting: Through-Hole
  • Row Spacing (Mating): 0.079 inches (2.00mm)
  • Model: SQT-125-03-F-D
  • Standard Package: 11 units
