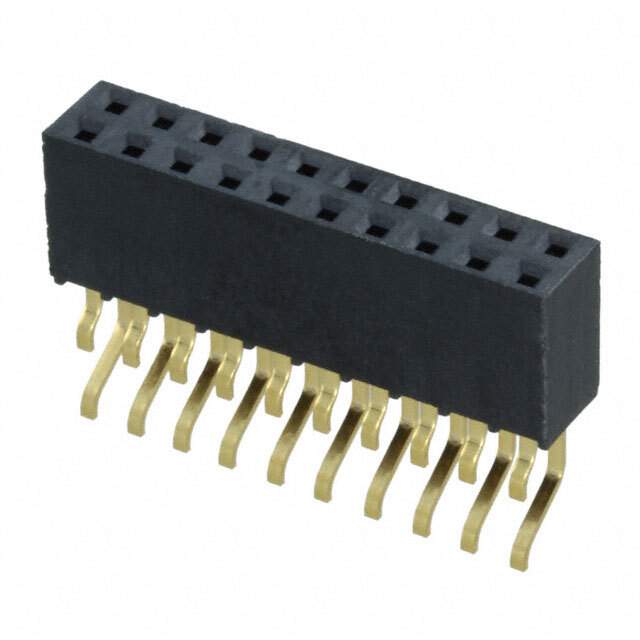

SMH-110-02-G-D

Name: SMH-110-02-G-D
Brand: Samtec Inc.
SKU: 1292510
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMH-110-02-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMH-110-02-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SMH
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.195" (4.95mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	SMH-110
Other Names	SAM12859,SMH-110-02-G-D
Standard Package	22
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292510-SMH-110-02-G-D
Ultra Librarian 3D Model	Ultra Librarian SMH-110-02-G-D CAD Model

Alternative Products

Description

The SMH-110-02-G-D is a 20-position female socket connector from the SMH series.

Series: SMH
Positions: 20
Connector Type: Female socket connector
Application: Board-to-board
Pitch: 0.100 inches (2.54mm)
Current Rating: Up to 3A per contact
Contact Material: Phosphor bronze
Contact Finish: Gold
Temperature Range: -55°C to 125°C
Material Rating: UL94 V-0
