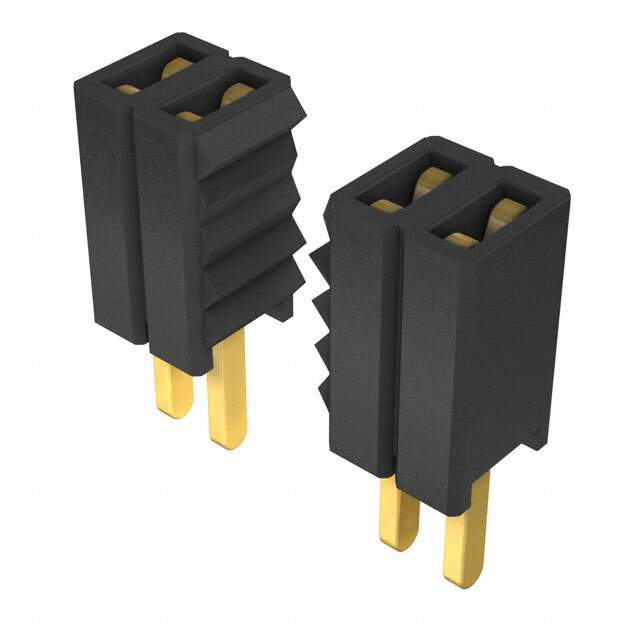

Same model may have multiple batches, images only for reference.

SLM-107-01-G-S

Name: SLM-107-01-G-S
Brand: Samtec Inc.
SKU: 1292674
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SLM-107-01-G-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SLM-107-01-G-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SLM
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	7
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Rectangular
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SLM-107
Other Names	SAM11791,SLM-107-01-G-S
Standard Package	61
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292674-SLM-107-01-G-S
Ultra Librarian 3D Model	Ultra Librarian SLM-107-01-G-S CAD Model

Alternative Products

Description

This rectangular connector is a part of the SLM series and comes with a receptacle connector type.

Positions: 7
Contact Type: Forked
Positions Loaded: All
Rows: Single row
Termination: Solder
Fastening Type: Push-pull
Package: Tube
Contact Material: Phosphor bronze
Voltage Rating: No voltage rating
Ingress Protection: No ingress protection
Insulation Material: Liquid crystal polymer (LCP)
Pitch-Mating: 0.050 inches (1.27mm)
Contact Finish: Gold
Contact Finish Thickness: 20.0µin (0.51µm)
Contact Finish Post: Gold
Contact Finish Thickness Post: 3.00µin (0.076µm)
Mounting Type: Through-hole
Contact Shape: Rectangular
Operating Temperature Range: -55°C to 125°C
