Same model may have multiple batches, images only for reference.

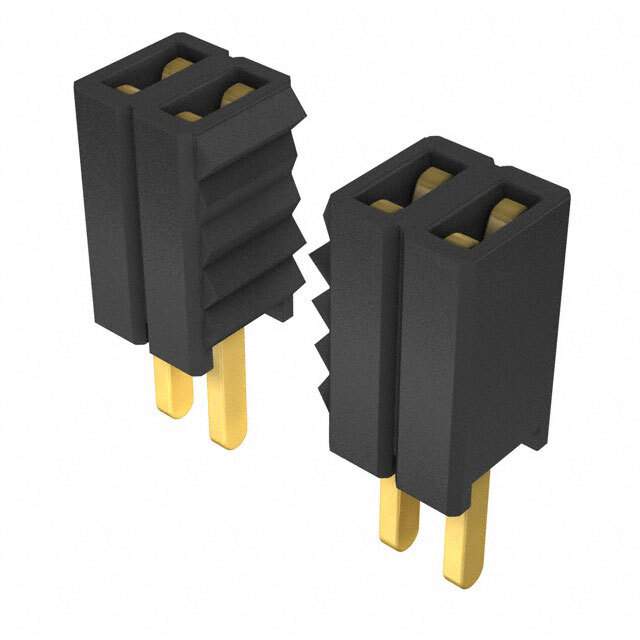

SLM-105-01-G-S Real Image
Same model may have multiple batches, images only for reference.

SLM-105-01-G-S

Part No SLM-105-01-G-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SLM-105-01-G-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SLM
Package Tube
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 5
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Gold
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SLM-105
Other Names SLM-105-01-G-S,SAM9135
Standard Package 86
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292678-SLM-105-01-G-S
Ultra Librarian 3D Model Ultra Librarian SLM-105-01-G-S CAD Model

Description

The Samtec SLM-105-01-G-S is a rectangular connector that is a receptacle type.

  • Positions: 5
  • Contact Type: Forked
  • Positions Loaded: All
  • Rows: 1
  • Termination Type: Solder
  • Fastening Type: Push-pull
  • Contact Material: Phosphor bronze
  • Voltage Rating: -
  • Mated Stacking Height: -
  • Ingress Protection Rating: -
  • Material Flammability Rating: No material flammability rating
  • Insulation Material: Liquid crystal polymer (LCP)
  • Pitch Mating: 0.050" (1.27mm)
  • Contact Finish Mating: Gold
  • Contact Finish Thickness Mating: 20.0μin (0.51μm)
  • Post Contact Finish: Gold
  • Post Contact Finish Thickness: 3.00μin (0.076μm)
  • Insulation Color: Black
  • Mounting Type: Through hole
  • Operating Temperature Range: -55°C to 125°C
