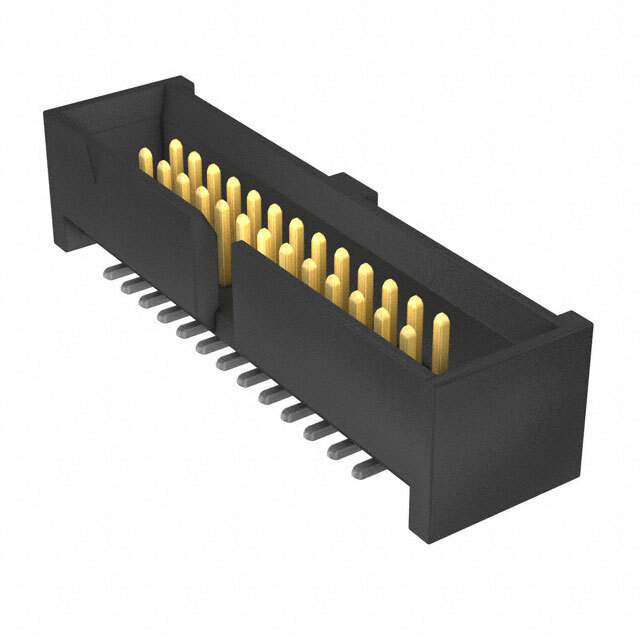

SHF-113-01-L-D-SM Real Image
Same model may have multiple batches, images only for reference.

SHF-113-01-L-D-SM

Part No SHF-113-01-L-D-SM
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SHF-113-01-L-D-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.210" (5.33mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-113
Other Names SHF-113-01-L-D-SM,SAM10712
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293133-SHF-113-01-L-D-SM
Ultra Librarian 3D Model Ultra Librarian SHF-113-01-L-D-SM CAD Model

Description

The Samtec Inc. SHF-113-01-L-D-SM is a male pin header connector that belongs to the rectangular connectors category.

  • Win Source Part Number: 1293133-SHF-113-01-L-D-SM
  • Series: SHF
  • Positions: 26
  • Feature: Keying Slot
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Tube
  • Contact Material: Phosphor Bronze
  • Voltage Rating: Not Specified
  • Shrouding: Shrouded
  • Walls: Four
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Style: Board to Cable/Wire
  • Pitch for Mating: 0.050 inches (1.27mm)
  • Contact Finish for Mating: Gold
  • Contact Finish Thickness for Mating: 10.0µin (0.25µm)
  • Contact Finish for Post: Tin
  • Insulation Color: Black
  • Row Spacing for Mating: 0.050 inches (1.27mm)
  • Contact Length for Mating: 0.120 inches (3.05mm)
  • Insulation Height: 0.210 inches (5.33mm)
  • Contact Shape: Square
  • Operating Temperature: -55°C to 125°C
