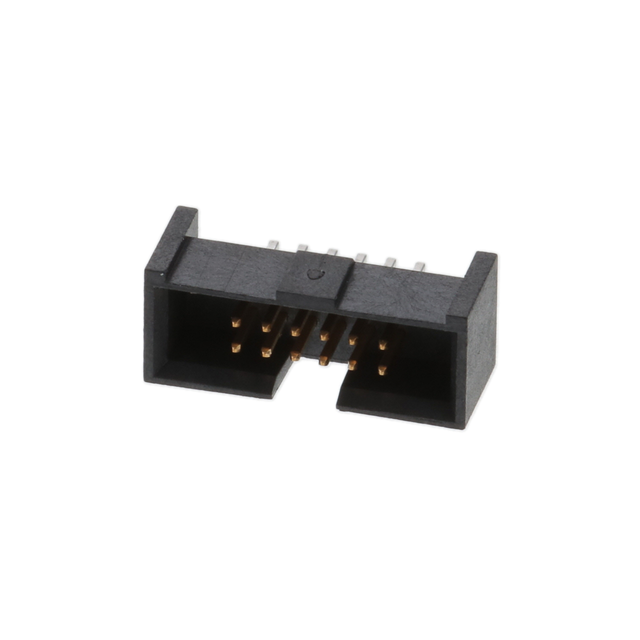

SHF-106-01-L-D-TH Real Image
Same model may have multiple batches, images only for reference.

SHF-106-01-L-D-TH

Part No SHF-106-01-L-D-TH
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SHF-106-01-L-D-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.075" (1.91mm)
Insulation Height 0.210" (5.33mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-106
Other Names SHF-106-01-L-D-TH,SAM15773
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293146-SHF-106-01-L-D-TH
Ultra Librarian 3D Model Ultra Librarian SHF-106-01-L-D-TH CAD Model

Description

The SHF series connector is a header type connector featuring a male pin contact type with a solder termination.

  • Series: SHF
  • Connector Type: Header
  • Contact Type: Male Pin
  • Termination: Solder
  • Positions: 12
  • Rows: 2
  • Positions Loaded: All
  • Insulation Material: Liquid Crystal Polymer
  • Insulation Color: Black
  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm) for mating and tin for post
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 3A per contact
  • Application: Board to Cable/Wire
  • Fastening Type: Push-Pull
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
