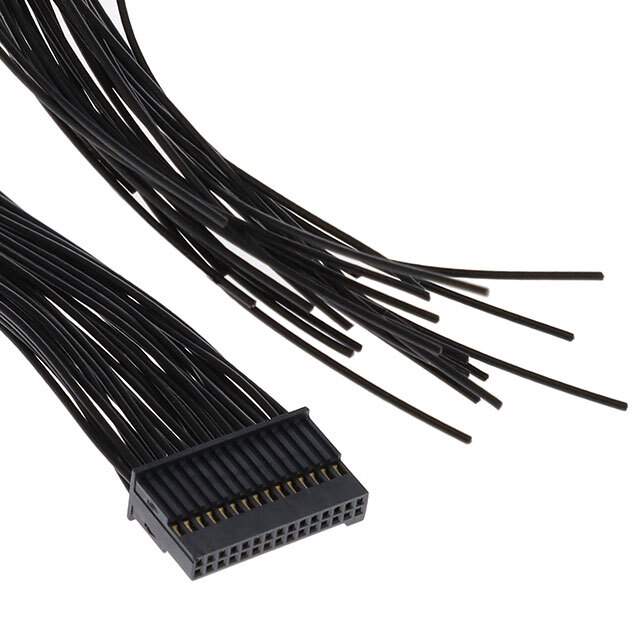

SFSD-15-28-H-48.00-S Real Image
Same model may have multiple batches, images only for reference.

SFSD-15-28-H-48.00-S

Part No SFSD-15-28-H-48.00-S
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
SFSD-15-28-H-48.00-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ SFSD
Package Bulk
Connector Type Socket to Individual Wire Leads
Number of Positions 30
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Length 4.00' (1.22m)
Features Polarizing Key
Color Black, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number SFSD-15
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1312115-SFSD-15-28-H-48.00-S
Ultra Librarian 3D Model Ultra Librarian SFSD-15-28-H-48.00-S CAD Model

Description

This cable assembly is a part of the Tiger Eye™ SFSD series and has 30 positions.

  • Positions: 30
  • Connector Type: Socket to Individual Wire Leads
  • Feature: Polarizing Key
  • Contact Finish: Gold
  • Finish Thickness: 30.0µin (0.76µm)
  • Cable Termination: Crimp
  • Shielding: Unshielded
  • Package: Bulk
  • Standard Package: 1
  • Pitch: 0.050" (1.27mm)
  • Cable Length: 4.00' (1.22m)
